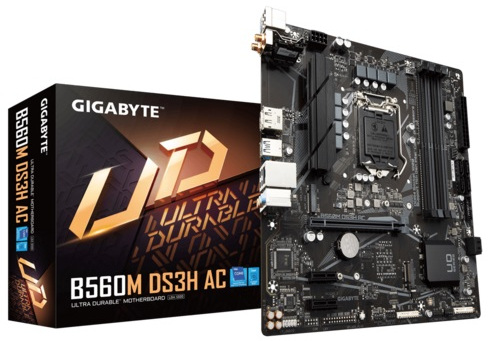

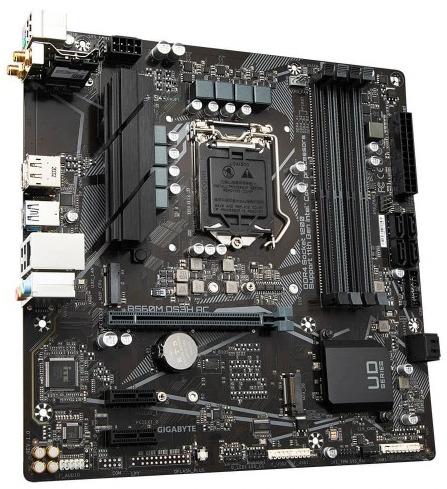

Gigabyte B560M DS3H AC Ultra Durable Motherboard

ID: 67092 Status: Sold Out

Price in Bangladesh

The lowest price of Gigabyte b560m ds3h ac ultra durable motherboard in Bangladesh is Tk-14,000/= only. Buy at low price in Bdstall. There is currently 0 seller.

Full Specification

Brand Gigabyte
Motherboard Type Standard
Chipset Intel B560 Express Chipset
Supported Processors Supports 11th and 10th Gen Intel Core i9 / Core i7 / Core i5 / Core i3 / Pentium processors / Intel Celeron
Max Memory 4 x DDR4 DIMM Sockets Supporting up to 128GB of system memory
Onboard Audio Realtek Audio CODEC
High Definition Audio
Onboard LAN Realtek GbE LAN Chip 1000 /100 Mbit
Connectors 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
6 x SATA 6Gb/s connectors
2 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header
1 x Clear CMOS jumper
1 x Q-Flash Plus button
2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x DisplayPort
1 x HDMI port
3 x USB 3.2 Gen 1 ports
1 x RJ-45 port
3 x audio jacks


Gigabyte B560M motherboard has onboard dual-band 802.11ac wireless & Bluetooth V4.2 with WIFI antenna. It has dual-channel non-ECC unbuffered DDR4, 4 DIMMs. This motherboard supports each fan header with PWM and DC fan and water cooling pump and over-current protection up to 24W (12V x 2A). All-solid capacitors to improve transient response and minimize oscillation.
