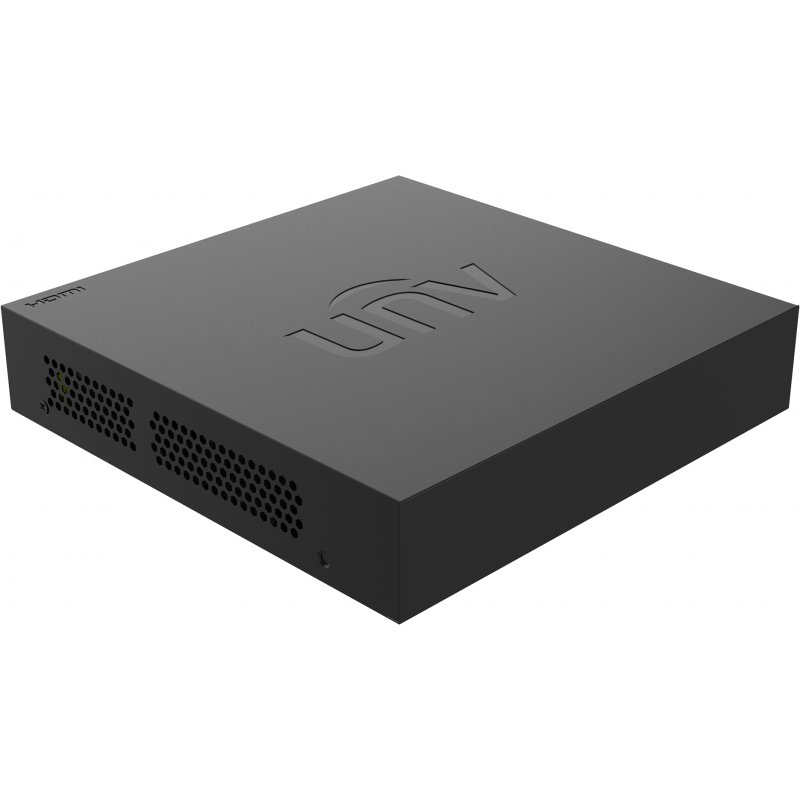

Uniview XVR301-04F 4-Channel SATA XVR
ID:
152464
Status: In Stock
Price in Bangladesh
The lowest price of Uniview xvr301-04f 4-channel sata xvr in Bangladesh is Tk 2,000 only. Buy XVR301-04F at low price in Bdstall. There is currently 1 seller.
01614305109
2 days ago
1 year service
NewFull Specification
| Item | DVR |
|---|---|
| Model | ✅ XVR301-04F |
| Camera Support | Analog / HD Camera |
| DVR Channel | 4 CH |
| HDD Bay | 1 Bay |
- Video/Audio Input
- IP Video Input: 2-channel (max 6-channel)
- Analog Video Input: 4-channel (BNC)
- Supported Analog Formats
- CVBS
- AHD / TVI / CVI (1080P at 30 fps, 720P at 30 fps)
- Video / Audio Output
- HDMI Resolution: 1920 x 1080 at 60/50 Hz
- VGA Resolution: 1920 x 1080 at 60 Hz
- Live View Display: HDMI/VGA: 1/4/6/8/9
- Encoding/Decoding
- Two-way Audio
- Recording Resolution: 1080P Lite/720P/D1
- Recording Frame Rate
- Mainstream: 1080P Lite at 25 fps, 720P at 30 fps
- Substream: D1 at 25/30 fps
- Audio Sample Rate: 8 kHz,
- Substream: D1 at 30 fps, 16-bit per channel
- Audio Bit Rate: 64 Kbps per channel
- Decoding Capability
- Analog: 4 × 1080P Lite at 25, 4 × 720P at 30
- IP: 1 × 6MP at 20, 2 × 1080P at 30
- Analog Snapshot
- FTP/Event snapshot: 4‑channel snapshot, up to 704 × 576 resolution
- Network
- Incoming Bandwidth: 24 Mbps (up to 32 Mbps)
- Outgoing Bandwidth: 48 Mbps
- Remote Users: 128
- Protocols: TCP/IP, P2P, UPnP, NTP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP
- Browser (Plugin): IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+
- Smart
- Analog Smart by XVR: Ultra Motion Detection (UMD)
- VCA Search: Behavior Search
- Smart Functions by XVR: 4‑ch (UMD)
- Alarm
- General Alarm: Motion
- Alert Alarm
- IP Conflict, Network Disconnected, Disk offline
- Disk Abnormal, Illegal Access, Hard Disk Space Low
- Hard Disk Full, Recording/Snapshot Abnormal
- Hard Disk
- SATA: 1 SATA interface
- Capacity: Up to 6 TB for each HDD
- External Interface
- Network Interface: 1 x RJ45 10 M/100 M self‑adaptive Ethernet Interface
- USB: Rear panel: 2 x USB2.0
- Power Supply: DC 12 V/1.5 A
- Working Environment
- Working Temperature: -10 ℃ to 55 ℃
- Working Humidity: 90 % RH (non‑condensing)
- Power Consumption (without HDD): 10 W
- Physical
- Dimension: 7.5 x 7.9 x 1.6"
- Weight: 0.6 kg
Description
The Uniview XVR301-04F is a 4-channel XVR that supports 4 BNC analog cameras and 2 IP cameras up to 6MP. This device works with AHD, TVI, CVI, and CVBS signals at 1080p/30fps or 720p/30fps. This Uniview XVR301-04F XVR offers HDMI and VGA outputs, along with recording options. This model includes motion detection, behavior search, and alarm alerts for disk and network issues. It is powered by 12V for low power consumption.
