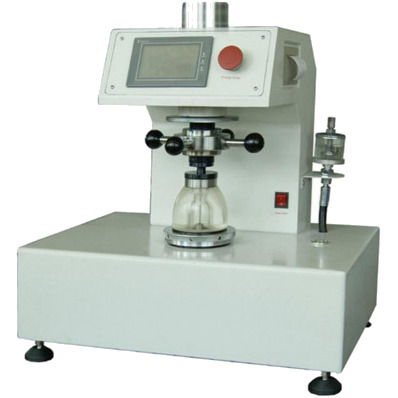

Anytester HY032D Bursting Strength Tester
ID:
138043
Status: In Stock
)
Price in Bangladesh
The lowest price of Anytester hy032d bursting strength tester in Bangladesh is Tk 950,000 only. Buy Anytester HY032D from Dhaka at low price in Bdstall. There is currently 1 seller.
01771186336
10 days ago
1 year service
NewFull Specification
| Item | Testing Instrument |
|---|---|
| Model | ✅ Anytester HY032D |
- Features
- Large touch screen for easy parameter setting
- High-precision digital distension sensor
- Lower clamps for fabric slippage prevention
- Transparent upper clamp for bursting process observation
- Manual clamping device with over 700kPa clamping force
- Mini-printer for test results
- Technical
- Bursting strength range: 10~6000 kPa
- Bursting strength resolution: 0.1 kPa
- Display error: 0.5% F.S
- Bursting distension range: Max.40 mm
- Bursting distension resolution: 0.1 mm
- Distension accuracy: ±0.1 mm
- Inner diameter of clamp: 30.5±0.05 mm
- Hydraulic fluid: Glycerin
- Power supply : AC220V 50Hz, 180W
- Dimensions : 560 x 390 x 680mm
- Weight: Approx. 105kg
Description
This Anytester HY032D is a bursting strength tester machine that uses to measure the bursting strength & bursting distension of textile fabrics by using a hydraulic method. The test specimen is clamped over a diaphragm & hydraulic pressure is applied, causing fabric distension. The fluid volume is increased until the specimen bursts, determining the bursting strength & distension.
