Item | Motherboard |
---|---|

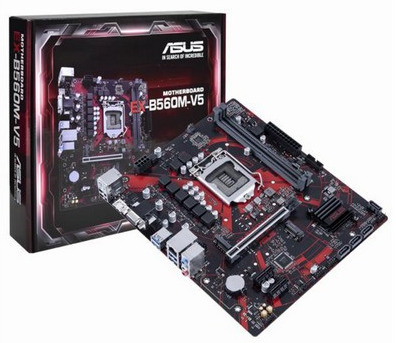

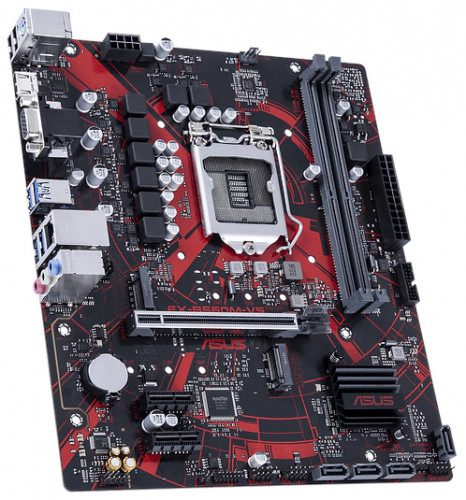

Model | ✅ Expedition EX-B560M-V5 |
Brand | Asus |
Motherboard Type | Standard |
Chipset | Intel B460 |
Supported Processors | Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold, and Celeron Processor |
Front Side Bus | DDR4 |
Max Memory | Up to 64GB |
Onboard Audio | Realtek ALC897 7.1 Surround Sound Jack-Detection, Multi-Streaming Supports up to 24-Bit/192 kHz Playback Premium Japanese Audio Capacitors Audio Shielding Dedicated Audio PCB Layers |
Onboard LAN | 1 x Realtek 1Gb Ethernet ASUS LANGuard |
Connectors | 1 x HDMI 1.4 / 2.0 Port 4 x USB 3.2 Gen 1 Port 2 x USB 2.0 Port 4 x SATA 6Gb/s Connector 1 x S/PDIF out Header 1 x 24-pin EATX Power Connector 1 x 8-pin EATX 12V Power Connector 1 x Front Panel Connector 1 x COM Debug Header 1 x Clear CMOS Jumper 1 x USB 3.2 Gen 1 Connector 1 x CPU Fan Connector 1 x Chassis Fan Connector 1 x AAFP Connector |
Other Features | Dual Channel Memory Architecture 2 x DDR4 DIMM Slot 128 Mb Flash ROM |
Asus Expedition EX-B560M-V5 motherboards are designed to withstand continuous use to withstand moisture, corrosion and overvoltage to ensure long life. The ASUS motherboard includes a full compatibility test with 144 hours of discussion system testing and over 100 gaming peripherals. Asus expedition motherboards offer incredible uninterrupted gaming performance as well as the highest level of stability, reliability.
