Item | Motherboard |
---|---|
Brand | Asus |
Chipset | Intel Z87 |
Supported Processors | Intel Socket 1150 for 4th Generation Core i7/Core i5/Core i3 |
Front Side Bus | - 8 +2 Digital Phase Power Design |
Max Memory | 4 x DIMM, Max. 32GB, DDR3 1866/1600/1333 MHz Non-ECC, Un-buffered Memory |
Onboard Video | Integrated Graphics Processor |
Onboard Audio | Realtek ALC1150 8-Channel High Definition Audio Codec |
Onboard LAN | Intel I217V, 1 x Gigabit LAN Controller(s) |
Connectors | 6 x USB 3.0/2.0 port(s) (4 at back panel, blue, 2 at mid-board) |
Other Features | Supports NVIDIA Quad-GPU SLI Technology |

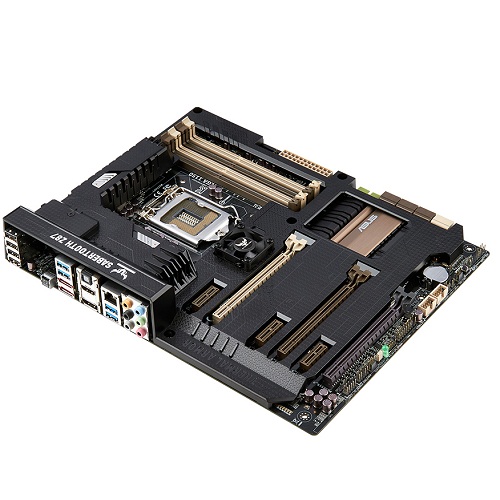

Asus Sabertooth Z87 4th Gen Intel Z87 chipset mainboard has LGA1150 socket for 4th Generation Intel Core i7/ i5/ i3 / Pentium / Celeron processors, Intel Z87 Express chipset, TUF fortifier - bolsters boards against bending damage, thermal armor with flow valve - total airflow-boosting heat dissipation, thermal radar 2 - complete system cooling and customized fan tuning, dust defenders - repel the dust expanding the lifespan, TUF components [10K Ti-Cap, Alloy Choke & MOSFET; certified by military-standard] – certified for tough duty.
