Item | Motherboard |
---|---|
Chipset | Intel B85 |
Supported Processors | Support the Intel 4th Generation Core i7 and Core i5 Processors in the 1150 Package |
Front Side Bus | 4-DIMM DDR3-1600 / 1333 |
Max Memory | 32 GB |
Onboard Video | By CPU Model Supports DX11.1 Supports HDCP |
Onboard Audio | Realtek ALC892 8-Channel Blu-Ray Audio |
Onboard LAN | Realtek RTL8111F - 10/100/1000 Controller |

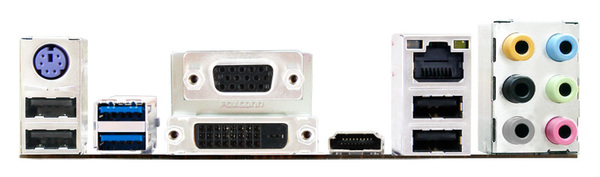

Connectors | 2 x USB 3.0 Port, 1 x USB 3.0 Header, 4 x USB 2.0 Port, 2 x USB 2.0 Header |
Other Features | 4 x SATA3 Connector, 2 x SATA2 Connector |

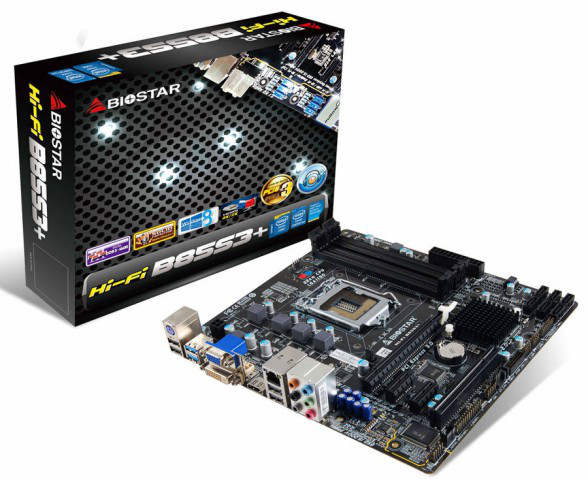

Biostar Hi-Fi-B85S3+ motherboard, socket 1150, FSB 1600, micro ATX MB, USB-3, SATA-3, 32 GB RAM support, multi graphics, 1PCI slot, 1Gen-3 slot, support 2k/4k HD image / video, Intel HD VGA, giga LAN, 6 channel blu ray audio, built in amplifier, DVI, VGA, HDMI port.
