CBR Test Machine
ID:
137811
Status: In Stock
)
Price in Bangladesh
The lowest price of Cbr test machine in Bangladesh is Tk 70,000 only. Buy from Dhaka at low price in Bdstall. There is currently 1 seller.
01839689255
4 hours ago
NewFull Specification
- General
- Test Speed Range: mm/min 0.5- 5
- Max Horizontal Clearance: 260
- Max Vertical Clearance: 690
- Min Vertical Clearance: 260
- Used for California Bearing Ratio Test on Subgrade Soil
- Imports Digital and Analog CBR Test Apparatus
- UTS-0856.ACPR Automatic CBR Test Machine
- Composed of a robust two-column frame with adjustable upper crossbeam.
- Allows tests complying with BS, EN, ASTM, or AASHTO standards
- Designed for laboratory evaluation of CBR value of highway sub-bases and sub-grade
- U-Touch PRO Control Unit
- Designed to control CBR test machine
- Offers real-time test graph display
- 4 analog channels
- Calibration function & programmable digital gain adjustment
Description

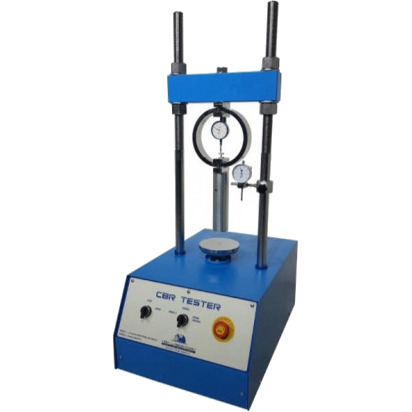

This CBR Test Machine is a device used to evaluate the strength of subgrade soil & base materials in road construction. It measures the pressure required to penetrate the soil with a standard-sized plunger. It helps determine the load-bearing capacity of the ground. Additionally, it is It is equipped with a 50 kN load cell, penetration piston, and linear potentiometric displacement transducer.
