Cisco QSFP-40/100-SRBD 40/100G BASE-Optical Transceiver Module
ID:
149178
Status: In Stock
-11%
){kind=spacer}
){kind=spacer}
What is the price of Cisco Cisco QSFP-40/100-SRBD in Bangladesh
The lowest price of Cisco Cisco QSFP-40/100-SRBD in Bangladesh is Tk 48,000 only. Buy Cisco QSFP-40/100-SRBD from Dhaka at low price in Bdstall. There is currently 1 seller.
ElephantRoad
(Dhaka)
01799452846
৳ 48,000
7 hours ago
1 year parts
1 year service
NewCisco Cisco QSFP-40/100-SRBD Full Specification
| Item | Media Converter |
|---|---|
| Model | ✅ Cisco QSFP-40/100-SRBD |
| Brand | Cisco |
| Converter Type | SFP Module |
- Cisco Compatible: QSFP-40/100-SRBD
- Form Factor: QSFP28
- Max. Data Rate: Dual Rate 40 Gbps and 100 Gbps
- Wavelength: 850/880/910/940nm
- Max. Cable Distance
- 100G: 75m@OM3/100m@OM4/150m@OM5
- 40G: 240m@OM3/350m@OM4/440m@OM5
- Connector: Duplex LC
- Media: MMF
- Transmitter Type: VCSEL
- Receiver Type: PIN
- TX Power
- 100G: -7.5~2 dBm
- 40G: -7.5~3 dBm
- Minimum Receiver Power
- 100G: L0: -9.5dBm, L1: -9.4dBm, L2: -9.4dBm, L3: -9.4dBm
- 40G: L0: -12.9dBm, L1: -12.5dBm, L2: -12.2dBm, L3: -11.9dBm
- Power Budget
- 100G: 1.9dB
- 40G: 2dB
- Receiver Overload
- 100G: 3.4 dBm
- 40G: 2.4 dBm
- Power Consumption
- 40G
- ≤3.5W
- Extinction Ratio: ＞2 dB
- DDM/DOM: Supported
- Commercial Temperature Range: 0 to 70°C (32 to 158°F)
- Modulation (Electrical): 4x 25G NRZ
- Modulation (Optical): 4x 25G NRZ
- Protocols
- SWDM MSA, QSFP28 MSA, IEEE802.3bm CAUI-4
Cisco Cisco QSFP-40/100-SRBD Description

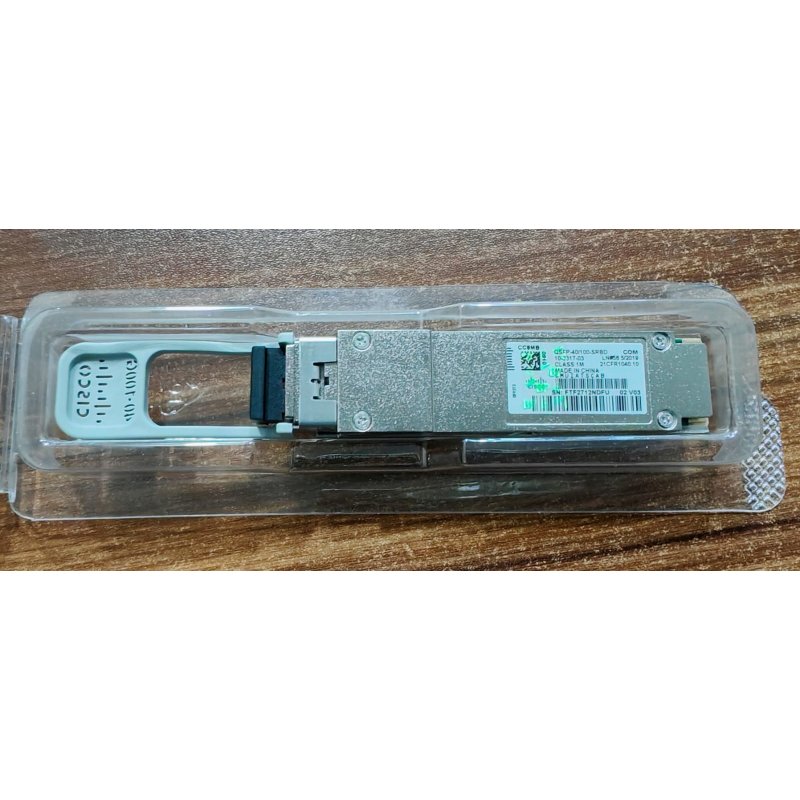

This Cisco QSFP-40/100-SRBD is basically a hot-swappable transceiver module that is specially designed for use in Cisco network devices. It has a 40Gbps mode, and its transceiver supports a link length of up to 440 meters on laser-optimized OM5 multimode fiber. Also, it is compliant with SWDM MSA, QSFP28 MSA, and IEEE802.3bm CAUI-4 electrical interface.
