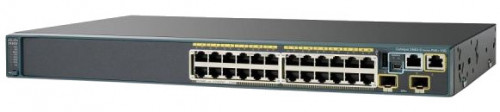

Cisco WS-C2960S-24TD-L 24-Ports LAN Switch

ID: 76861 Status: Sold Out

What is the price of Cisco WS-C2960S-24TD-L in Bangladesh

The lowest price of Cisco WS-C2960S-24TD-L in Bangladesh is Tk-35,000/= only. Buy WS-C2960S-24TD-L at low price in Bdstall. There is currently 0 seller.

Cisco WS-C2960S-24TD-L Full Specification

Model ✅ WS-C2960S-24TD-L
Brand Cisco
LAN Connectivity 10 / 100 / 1000 Mbps ethernet connection
Ports 24 x Ethernet 10 / 100 / 1000 ports FP
Uplink Port 2 x 10G SFP+ or 2 x 1G SFP+
Protocol SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH
System Requirements Cisco IOS LAN Base
  • The enclosure type is 1U rack-mountable
  • Expansion slots are 1-total / 1-free x stacking module
  • The switching capacity is 176 Gbps
  • Forwarding performance is 65.5 Mpps
  • DRAMs size is 128 MB
  • Flash memory is 64 MB
  • MAC address table size is 8K in total
  • The encryption algorithm is SSL
  • The authentication method is secure shell (SSH), RADIUS, TACACS+
  • Included buttons / ports
    • Mode button
    • Ethernet management port
    • RJ45 console port
    • SFP module slot 1
    • USB mini-Type B port
    • SFP module slot 2
    • USB Type-A port
    • RPS connector
    • Fan exhaust
    • AC power connector
  • Supports
    • Layer 2 switching
    • Auto-sensing per device
    • Dynamic IP address assignment
    • Auto-negotiation
    • BOOTP support
    • ARP support
    • Load balancing
    • VLAN support
    • Auto-uplink (auto MDI/MDI-X)
    • IGMP snooping
    • Syslog support
    • DiffServ support
    • IPv6 support
    • Broadcast / Multicast / Unicast storm control
    • Rapid spanning tree protocol (RSTP) support
    • Multiple spanning tree protocol (MSTP) support
    • DHCP snooping
    • Dynamic trunking protocol (DTP) support
    • Port aggregation protocol (PAgP) support
    • Access control List (ACL) support
    • Quality of service (QoS)
    • Link aggregation control protocol (LACP)
    • Port security
    • MAC address notification
    • Remote switch port analyzer (RSPAN)
  • Compliant network standards are IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP)
  • Power
    • Voltage required AC 120 / 230 V at 50 / 60 Hz
    • Power consumption operational 39-watt
  • Environmental parameters
    • Operating temperature from -5°C to 40°C
    • Humidity range operating from 10 to 95%
    • Storage temperature from -25°C to 70°C
    • Humidity range of storage from 10 to 95%
  • Dimension is 44.5 x 38.6 x 4.5 cm
  • Weight is 10.65 Kg

Cisco WS-C2960S-24TD-L Description

The Cisco WS-C2960S-24TD-L comes with a layer 2 switch that is great with its 2 Ten Gigabit Ethernet SFP+ or 2 One Gigabit Ethernet SFP dual-purpose uplinks. It features a dual-purpose uplink port that one port active at a time. It also provides 24 ethernets 10 / 100 / 1000 switch ports, optional Cisco FlexStack stacking support, and a LAN Base image.
