DC 12V-60V Battery Capacity Indicator
ID:
144902
Status: In Stock
-20%
)
)
)
Price in Bangladesh
The lowest price of Dc 12v-60v battery capacity indicator in Bangladesh is Tk 120 only. Buy from Gazipur at low price in Bdstall. There is currently 1 seller.
2 days ago
NewFull Specification
| Item | Module Board |
|---|
- Double display: Battery capacity + voltage
- Up line: 8 colorful bars show the battery power
- Down line
- Voltmeter displays battery voltage, the voltage table decimal point automatically shifts, and the accuracy is higher
- Use of a wider range
- 18650 lithium polymer lithium battery pack, lead-acid batteries, electric car batteries, and other types of electric equipment can be used
- Technical Information
- Working current: 5-15mA (The lower the battery voltage is, the smaller the current is)
- Eight electricity Resolution: 10%, 25%, 40%, 50%, 60%, 75%, 90%, 100%
- Voltmeter accuracy: 1%
- Working temperature: -10 ~ +65℃
- Operating Humidity: 10 ~ 80%
- Material: ABS
- Size: 48 x 29 x 21mm/1.89 x 1.14 x 0.83in (Approx.)
- LED Indicator Color: Blue/Red (Optional)
Description

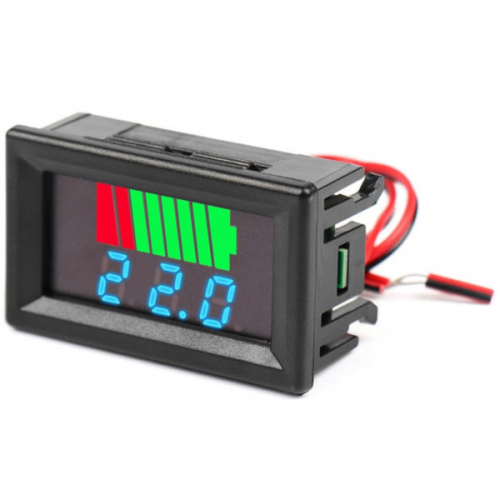

This DC 12V-60V Battery Capacity Indicator is a tool that is usually used to monitor the charge level of lead-acid batteries. It has a display that shows 8 colorful bars showing the battery power, and has a wide range of applications like 18650 lithium polymer lithium battery pack, electric car batteries, lead-acid batteries, and other types of electric equipment.
