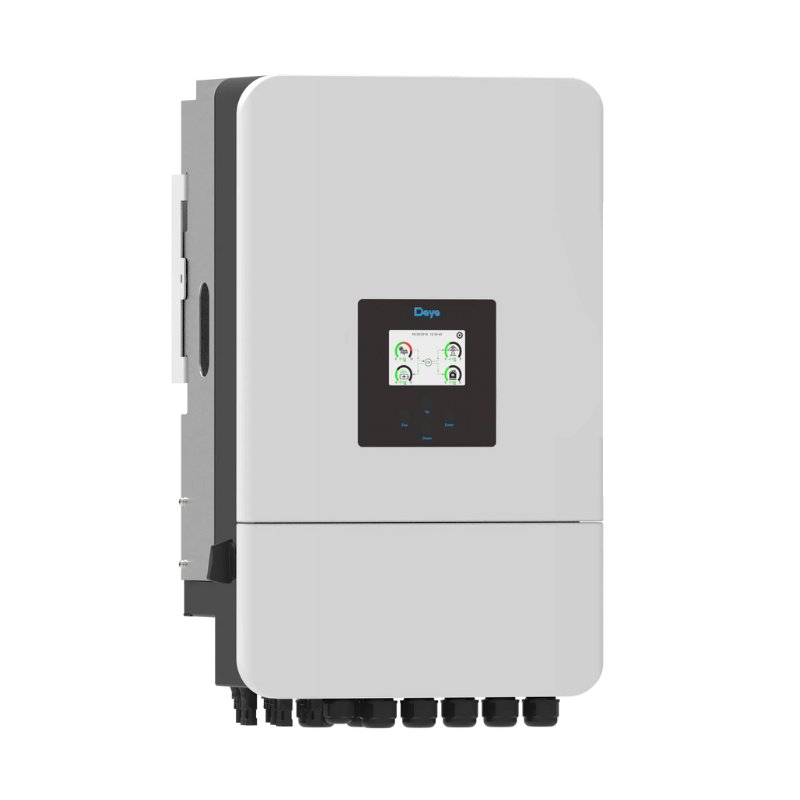

Deye 6KW Hybrid Solar Inverter
ID:
146316
Status: In Stock
-13%
)
)
)
Price in Bangladesh
The lowest price of Deye 6kw hybrid solar inverter in Bangladesh is Tk 130,000 only. Buy SUN-6K-SG05 LP1-EU-SM2 from Dhaka at low price in Bdstall. There is currently 2 sellers.
Gulistan
(Dhaka)
01996677558
৳ 130,000
1 day ago
5 years parts
5 years service
New
Kamalapur
(Dhaka)
৳ 130,000
2 days ago5 years parts5 years serviceNewFull Specification
| Item | Solar IPS |
|---|---|
| Model | ✅ SUN-6K-SG05 LP1-EU-SM2 |
- Key Features
- Colorful touch LCD, IP65 protection degree
- AC couple to retrofit existing solar system
- Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries in parallel
- Max. charging/discharging current of 140A
- 6 time periods for battery charging/discharging
- Support storing energy from the diesel generator
- Battery Input Data
- Battery Type: Lead-acid or Lithium-ion
- Battery Voltage Range: 40~60 V
- Max. Charging Current: 135 A
- Max. Discharging Current: 175 A
- Charging Strategy (Li-ion): Self-adaptation to BMS
- Number of Battery Inputs: 1
- PV (Solar) Input Data
- Max. PV Input Power: 10000 W
- Max. PV Input Voltage: 600 V
- Start-up Voltage: 150 V
- MPPT Voltage Range: 150~425 V
- Rated PV Input Voltage: 370 V
- Max. Operating PV Input Current: 2 x 18 A
- Max. Short Circuit Current: 2×27.2 A
- Number of MPPT Trackers: 2
- Strings per MPPT Tracker: 1+1
- AC Output (Grid) Data
- Rated Output Active Power: 6000 W
- Max. AC Apparent Power: 6600 VA
- Rated AC Output Current: 26.1 A
- Max. AC Input/Output Current: 31.9 / 30.5 A
- Max. Continuous AC Pass-through: 100 A
- Peak Power (Off-grid): 2 x rated power (10 seconds)
- Power Factor Adjustment Range: 0.8 Leading ~ 0.8 Lagging
- Rated Output Voltage / Range: 220/230 V (180~270 V)
- Grid Frequency / Range: 50/60 Hz
- Performance & Protection
- Total Harmonic Distortion: <3>
- DC Injection Current: <0>
- Max. Efficiency: 97.6%
- Euro Efficiency: 97.0%
- MPPT Efficiency: 99.9%
- Protection Features
- DC Reverse, Overcurrent, Over/Under Voltage, Ground Fault, Arc Fault, Surge, Insulation, etc
- Communication & Monitoring
- Communication Interface: RS485 / RS232 / CAN
- Monitoring Options: Wi-Fi / GPRS / Bluetooth / 4G (Optional)
- Certifications
- IEC 61727, IEC 62116, EN 50549, VDE 0126, EN 62109-1/-2, EN 61000-6-1/-2/-3/-4
- Environment & Installation
- Operating Temperature Range
- -40°C to +60°C (>45°C Derating)
- Relative Humidity: 0~100%
- Max. Operating Altitude: 4000 m
- Noise Level: <30>
- Protection Level (IP Rating): IP65
- Inverter Topology Non-isolated
- Over Voltage Category: OVC II (DC), OVC III (AC)
- Cooling System: Intelligent Air Cooling
- Dimensions: 366 x 589 x 527 mm
- Net Weight: 26.8 kg
- Operating Temperature Range
Description
This Deye SUN-6K-SG05 LP1-EU-SM2 is a powerful 6kW hybrid solar inverter, which is compatible with both lead-acid and lithium-ion batteries. It offers dual MPPTs, a 40–60V wide battery voltage range, and an intelligent air cooling function that provides efficient performance. It has up to 97.6% max efficiency and advanced protection systems, ensuring a reliable and safe energy conversion. Perfect for both on-grid and off-grid solar systems.
