Name: Dotmax X-718 1D Wired Barcode Scanner Price in Bangladesh
SKU: 143296
Price: 2300 BDT
Availability: InStock

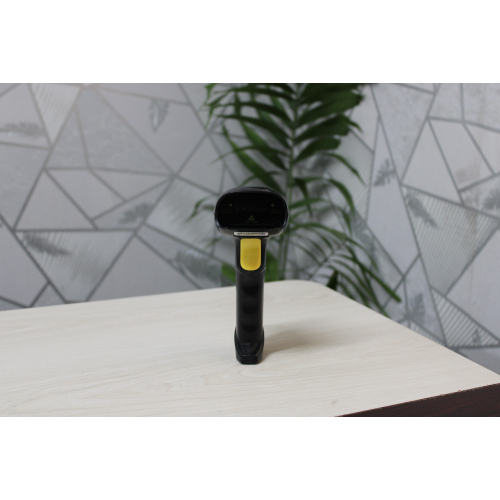

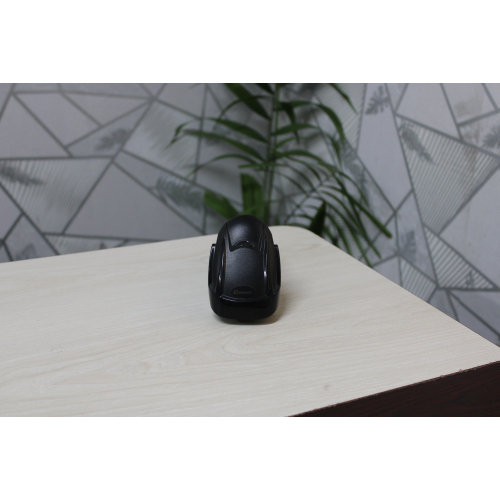

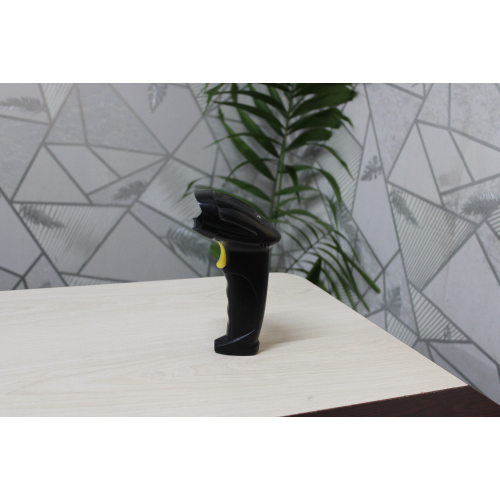

Dotmax X-718 1D Wired Barcode Scanner

ID: 143296 Status: In Stock

-17%

Price in Bangladesh

The lowest price of Dotmax x-718 1d wired barcode scanner in Bangladesh is Tk 2,300 only. Buy Dotmax X-718 at low price in Bdstall. There is currently 1 seller.

Malibagh

(Dhaka)

Call Seller WhatsApp

৳ 2,300

~~৳ 2,800~~ -17%

3 months ago

1 year service

New

Full Specification

Item	Barcode Scanner
Model	✅ Dotmax X-718
Light Source	2 x super-bright Red LEDs
Working Channel	1D
Scanning Pattern	Manual trigger & Automatic induction
Connectivity	USB
Dimension	70 x 95 x 170 mm

Performance
- Scan Rate: Up to 60fps
- Decode angle
  - Pitch Angle: ±50°
  - Skew angle：±50°
  - Tilt angle：360°
- Fixed Focus Distance
  - SR: 130mm
  - HD: 70mm
- Motion capability: SR = 2M/s
- HD: 1M/s
- Min resolution
  - C39 at PCS 0.9
    - SR: 5mil (0.127mm)
    - HD: 3mil (0.076mm)
- Min. PCS Value: 30% min reflective difference
- Field of View: 41º (H, pictured), 26º (V)
Optical Characteristics
- Photosensor Laser
- Sensor resolution: 752 x 480 pixels
Environmental Characteristics
- Temperature
  - Operating: -30 to 60 °C / -22 to 140 °F
  - Storage: -40 to 70 °C / -40 to 158 °F
- Humidity: 5 percent - 90 percent
- Ambient Light
  - Fluorescent: 10,000 lx max
  - Incandescent: 10,000 lx max
  - Direct sun: 100,000 lx max
Identification
- 1D codes
  - JAN/UPC/EAN incl. add on, Coda bar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 Databa (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSN-ISMN, Matrix 2of5, MSI/Plessey, S-Code, Tele pen, Tri-Optic, UK/Plessey
- Postal Codes
  - Chinese Post, Intelligent Mail Barcode, Korean Postal Authority code
Power
- Interface: RS-232/USB HID Keyboard/USB VCP
- Voltage requirement: 5.0V
- Current consumption: 160mA, Max: 260mA

Description

Dotmax X-718 1D is a wired handheld barcode scanner that has up to 60fps scan rate, 360° tilt angle, 2 x super-bright Red LEDs, manual trigger & automatic induction, USB connectivity, 130mm SR & 70mm HD focus distance, 41º of field viewing, 752 x 480 pixels sensor resolution, 30% min reflective difference, -30 to 60 °C operating temperature, and maximum 260mA current consumption.
