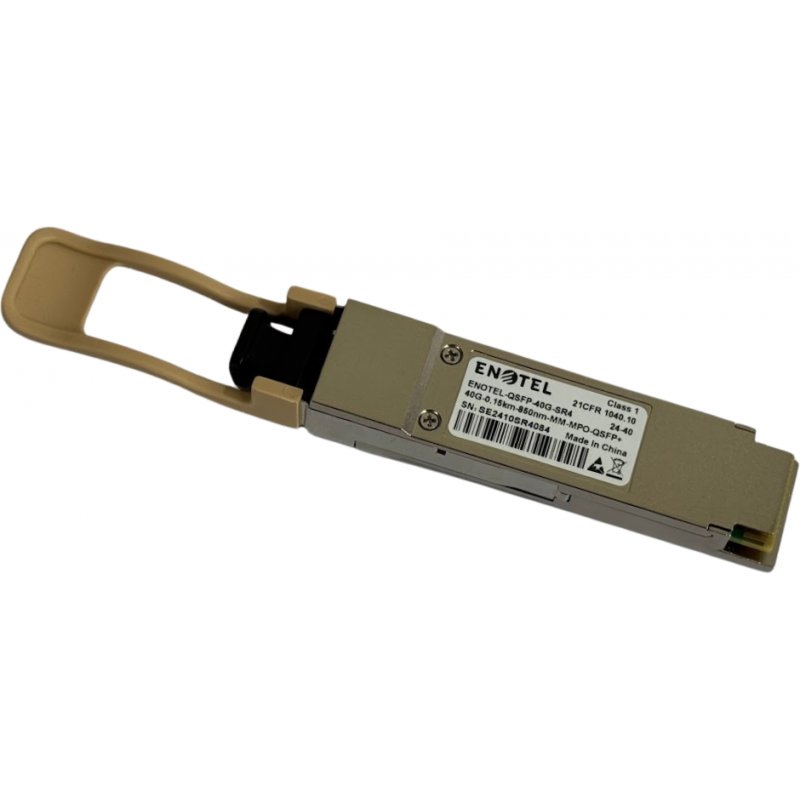

Enotel 40G QSFP+ SR4 Short Range Transreceiver Module
ID:
152314
Status: In Stock
-3%
Price in Bangladesh
The lowest price of Enotel 40g qsfp+ sr4 short range transreceiver module in Bangladesh is Tk 3,200 only. Buy Enotel 40G QSFP+ SR4 at low price in Bdstall. There is currently 1 seller.
ElephantRoad
(Dhaka)
01857909100
৳ 3,200
21 hours ago
2 years parts
2 years service
NewFull Specification
| Item | Networking Accessories |
|---|---|
| Model | ✅ Enotel 40G QSFP+ SR4 |
- Form Factor: QSFP+
- Data Rate
- Max Data Rate: 41.25Gbps (4x 10.3125Gbps)
- Optical Characteristics
- Wavelength: 850nm
- Media: MMF
- Max Cable Distance: 150m at OM4 / 100m at OM3
- Connector: MTP/MPO-12 Male
- Electrical Characteristics
- TX Power: 7.1‑1.9dBm
- Receiver Sensitivity: <-10.3dBm
- Power Consumption: <1>
- Power Budget: 3.5dB
- Receiver Overload: 2.4dBm
- Transceiver Details
- Transmitter Type: VCSEL
- Receiver Type: PIN
- Modulation: NRZ
- Extinction Ratio: >3 dB
- Core Size: 50 µm
- Performance
- Bit Error Ratio (BER): 1E-12
- Temperature Range
- Commercial Temperature Range: 0 to 70 °C (32 to 158 °F)
- Protocols
- Protocols: IEEE 802.3ba, QSFP+ MSA, SFF-8436, SFF-8636
Description
This Enotel 40G QSFP+ SR4 is an optical transceiver module designed for short-range data transmission over multimode fiber. The optical transceiver module supports distances up to 150 meters on OM4 fiber. It operates at a data rate of 40Gbps for excellent data centers, switches, and high-speed networks. The module ensures steadfast connectivity with low latency and efficient power consumption.
