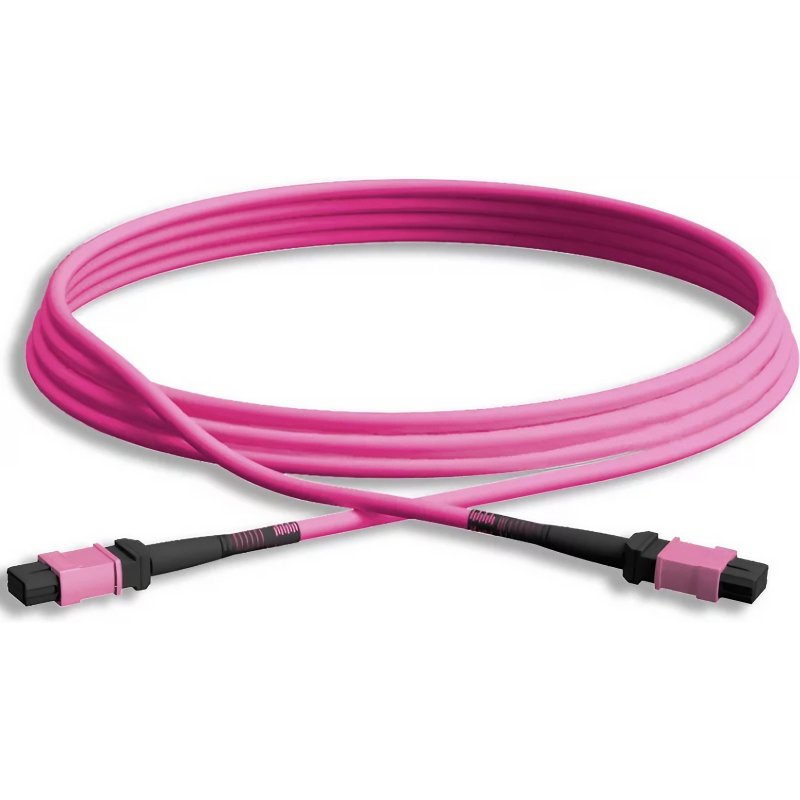

Enotel MPO-MPO OM4 12B Core Multimode Fiber Patch Cord
ID:
152325
Status: In Stock
Price in Bangladesh
The lowest price of Enotel mpo-mpo om4 12b core multimode fiber patch cord in Bangladesh is Tk 1,800 only. Buy Enotel MPO-MPO OM4 at low price in Bdstall. There is currently 1 seller.
01857909100
8 days ago
1 month parts
1 month service
NewFull Specification
| Item | Networking Accessories |
|---|---|
| Model | ✅ Enotel MPO-MPO OM4 |
- Connectors
- Connector A: MPO Female (SENKO)
- Connector B: MPO Female (SENKO)
- Polarity: Type B
- Fiber
- Fiber Type: OM4 50/125 μm Multimode
- Fiber Count: 12
- Polish Type: UPC to UPC
- Glass Fiber: YOFC
- Optical Performance
- Wavelength: 850/1310 nm
- Attenuation at 850 nm: ≤2.3 dB/km
- Attenuation at 1310 nm: ≤0.6 dB/km
- Insertion Loss MPO: 0.75 dB Max (0.35 dB Typ.)
- Return Loss MPO: ≥20 dB
- Mechanical
- Jacket Diameter: 3.0 mm
- Jacket Type: LSZH
- Minimum Bend Radius: 7.5 mm
- Installation Tensile Load: 66N
- Long-Term Tensile Load: 50N
- Environmental
- Storage Temperature: -40 °C to +85 °C
- Operating Temperature: -10 °C to +70 °C
- Length
- Length: 1 to 10 m
Description
The Entol MPO-MPO OM4 patch cord is a high-quality multimode optical fiber patch cable that is available in lengths ranging from 1M to 3M, 5M, and 10M. It operates at 40G/100G speeds. It also offers 8-core and 12-core configuration options, and its female-to-female MPO connectors allow for easy installation, making it a solid patch cord solution for OLTs, switches, and data center use.
