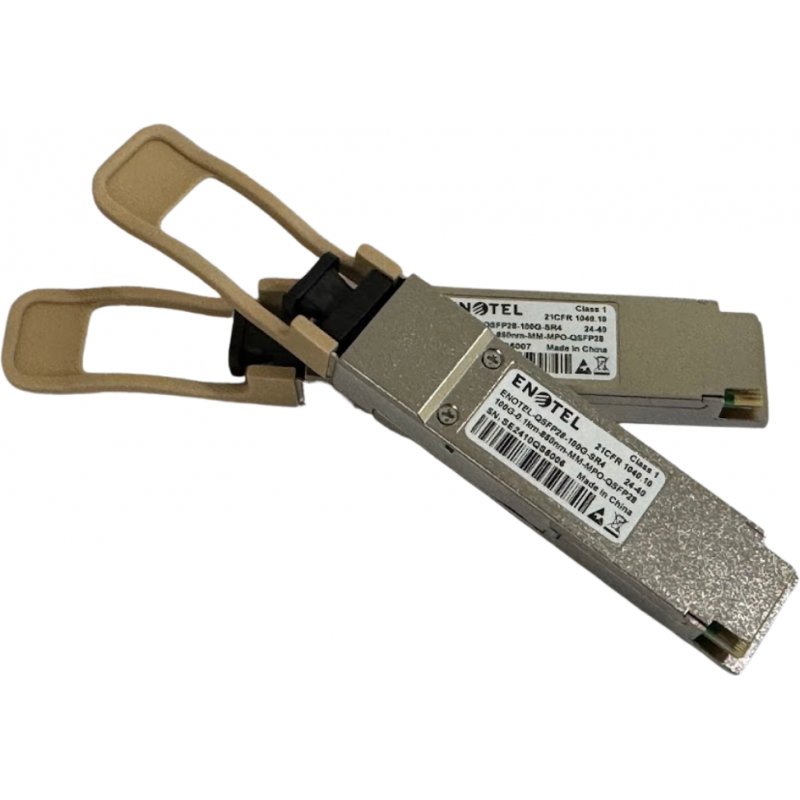

Enotel QSFP28-100G SR4 Short Range Transceiver Module
ID:
152315
Status: In Stock
Price in Bangladesh
The lowest price of Enotel qsfp28-100g sr4 short range transceiver module in Bangladesh is Tk 4,500 only. Buy Enotel QSFP28-100G-SR4 at low price in Bdstall. There is currently 1 seller.
01857909100
1 day ago
2 years parts
2 years service
NewFull Specification
| Item | Networking Accessories |
|---|---|
| Model | ✅ Enotel QSFP28-100G-SR4 |
- Performance
- Max Data Rate: 103.125 Gbps (4x 25.78 Gbps)
- TX Power: 8.4-2.4 dBm
- Minimum Receiver Power: -10.3 dBm
- Receiver Overload: 2.4 dBm
- Power Budget: 1.9 dB
- Typical Power Consumption: 2.5 W
- Optical Characteristics
- Wavelength: 850 nm
- Max Cable Distance: 70 m at OM3 / 100 m at OM4
- Media: MMF
- Transmitter Type: 850 nm
- Receiver Type: PIN
- Extinction Ratio: >3 dB
- Connector: MTP/MPO-12
- Features
- DDM/DOM
- TX&RX Built-in CDR
- Protocols
- IEEE 802.3bm
- QSFP28 MSA
- SFF-8665
- SFF-8636
- RoHS
- CPRI
- eCPRI
Description
This Enotel 100G QSFP28 SR4 Transceiver is an optical module that is designed for sending data over short distances, up to 100 meters, using OM4 multimode fiber. It handles 100 billion bits of data every second. It is suitable for data centers, switches, and applications that require a lot of bandwidth.
