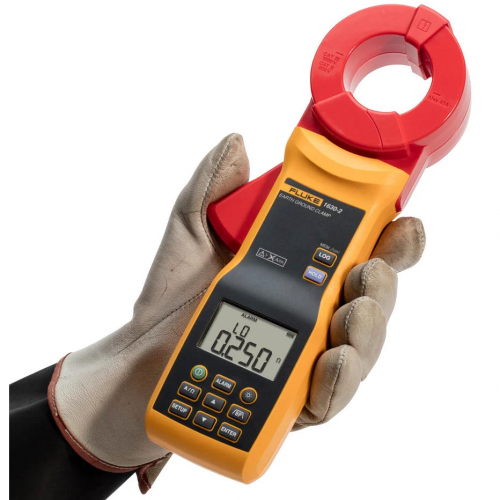

Fluke 1630-2 Earth Ground Clamp Meter
)
)
)
)
Price in Bangladesh
The lowest price of Fluke 1630-2 earth ground clamp meter in Bangladesh is Tk 250,000 only. Buy from Dhaka at low price in Bdstall. There is currently 1 seller.
01839689255
4 hours ago
NewFull Specification
| Item | Multimeter |
|---|---|
| AC Current | 4.00 A to 39.99 A |
| AC Voltage | 1000V |
| Resistance | 0.025 Ω to 0.249 Ω |
| Temperature | -10 °C to + 50 °C |
| Frequency | 40 Hz to 1 kHz |
| Display | LCD |
| Display Count | 9999 counts |
| Power | 10mW |
| Weight | 880g |
| Dimension | 283 x 105 x 48 mm |
- Physical Specifications
- Refresh rate: 4 per second
- Output Power: 10mW
- Auto Range: 50/60 Hz
- True RMS, crest factor CF ≤3
- Overload indication: OL
- Function
- Earth Ground Loop Resistance
- Ground resistance measurement mode
- Backlight turned off, and RF mode turned off
- Wireless Radio
- Overload Indication: OL
- Earth ground leakage current mA
- 1 Loop resistance with no inductance
- Conductor centered and perpendicular to the jaw
- Save and share data via Fluke Connect
- Perform tests without driving stakes
- 3 - and 4-pole fall-of-potential (using stakes)
- Selective testing (using 1 clamp and stakes)
- Stakeless testing (using 2 clamps only)
- 4 - Pole soil resistivity testing (using stakes)
- Data Logging
- Capacity: Minimum of 32,760 measurements
- Interval: 1 second to 59 minutes and 59 seconds
- Electromagnetic compatibility
- General
- IEC/EN 61010-1: Pollution Degree 2 IEC/EN 61557-1
- Measurement
- IEC/EN 61010-2-032: CAT IV 600 V / CAT III 1000 V
- Current clamp for leakage current measurements
- IEC/EN 61557-13: Class 2, ≤30 A/m\
- Resistance to earth
- IEC/EN 61557-5
- Effectiveness of the Protective measures
- IEC/EN 61557-16
- Radio frequency certification
- FCC ID:T68-FBLE IC:6627A-FBLE
- Portable Electromagnetic Environment
- CISPR 11: Group 1, Class B, IEC/EN 61326-2-2
- Ingress protection
- IEC/EN 60529: IP30 with jaw closed
- General
- Input (Ω) Minimum and Maximum
- 0.474 0.417 0.531
- 0.5 0.443 0.558
- 10 9.55 10.45
- 100 96 104
- Range Accuracy1 ± (% of reading + Ω)
- 0.025 Ω to 0.249 Ω 1.5% + 0.02 Ω
- 0.250 Ω to 0.999 Ω 1.5% + 0.05 Ω
- 1.000 Ω to 9.999 Ω 1.5% + 0.10 Ω
- 10.00 Ω to 49.99 Ω 1.5% + 0.30 Ω
- 50.00 Ω to 99.99 Ω 1.5% + 0.50 Ω
- 100.0 Ω to 199.9 Ω 3.0% + 1.0 Ω
- 200.0 Ω to 399.9 Ω 5.0% + 5.0 Ω
- 400 Ω to 599 Ω 10.0% + 10 Ω
- 600 Ω to 1500 Ω 20.00%
- Range Resolution Accuracy1 ± (% of reading + mA)
- 0.200 mA to 3.999 mA 1 μA 2.0% + 0.05 mA
- 4.00 mA to 39.99 mA 10 μA 2.0% + 0.03 mA
- 40.0 mA to 399.9 mA 100 μA 2.0% + 0.3 mA
- 0.400 A to 3.999 A 1 mA 2.0% + 3 mA
- 4.00 A to 39.99 A 10 mA 2.0% + 30 mA
- Storage Temperature
- 20 °C to + 60 °C
- Operating humidity
- Noncondensing: (<10>
- ≤90% RH (at 10 °C to 30 °C [50 °F to 86 °F])
- ≤75% RH (at 30 °C to 40 °C [86 °F to 104 °F])
- ≤45% RH (at 40 °C to 50 °C [104 °F to 122 °F])
- Battery
- Battery Type: AA alkaline IEC/EN LR6 (x4)
- Battery Life: More than 15 hours
- Structure
- Conductor Size: 40 mm (1.57 in) approximately
- Dimension: 283 x 105 x 48 mm
- Weight: 880g

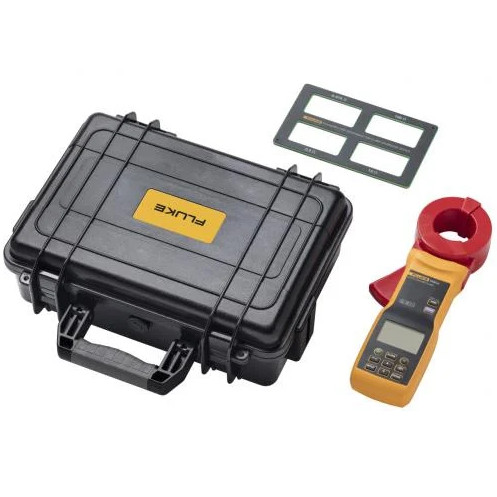

- What’s in the box
- 1 x 1630-2 FC earth ground clamp
- 1 x Hard case
- 1 x Loop resistance standard
- 4 x AA batteries
- 1 x Safety information guide
- 1 x Quick reference guide
Description

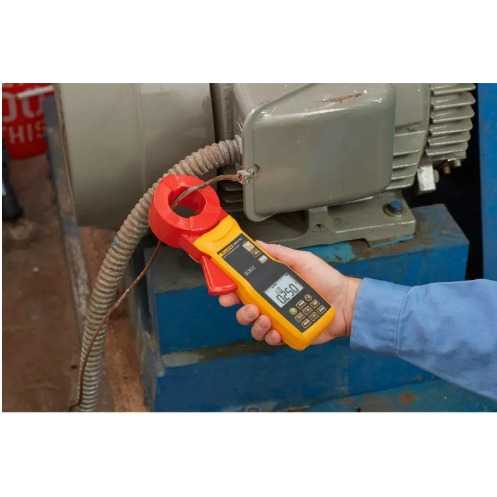

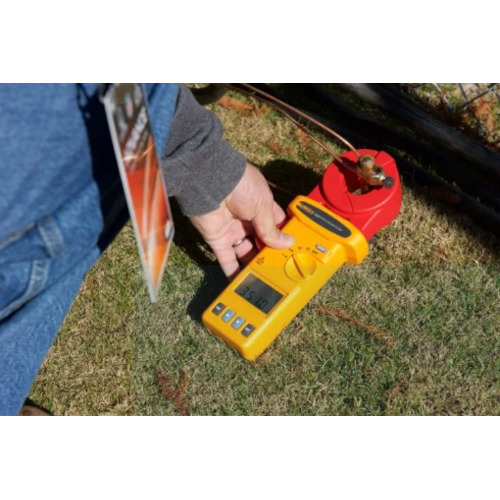

The Fluke 1630-2 FC is a dual-clamp jaw thermometer that can measure earth ground loop resistance and AC leakage current. The machine has an LCD digital reading of 9999 counts with a 4-per-second refresh rate. It offers test techniques that remove the dangerous and time-consuming activity of disconnecting parallel grounds, as well as the process of finding suitable locations for auxiliary test stakes. It also performs ground tests in difficult places like inside buildings, on power pylons, or anywhere you don't have access to soil to place auxiliary test stakes.
