Item | Motherboard |
---|---|
Brand | Gigabyte |
Chipset | Intel B150 Express Chipset |
Supported Processors | Support for Intel Core i7 Processors / Intel Core i5 Processors / Intel Core i3 Processors / Intel Pentium Processors / Intel Celeron Processors in the LGA1151 Package L3 Cache Varies With CPU |
Max Memory | 4 x DDR4 DIMM Sockets Supporting up to 64 GB of System Memory |
Onboard Video | Integrated Graphics Processor - Intel HD Graphics Support 1 x DVI-D port, Supporting a Maximum Resolution of 1920x1200@60 Hz |
Onboard Audio | Realtek ALC1150 Codec TI NE5532 Operational Amplifier High Definition Audio 2/4/5.1/7.1-Channel Support for S/PDIF Out |
Onboard LAN | Intel GbE LAN Chip |

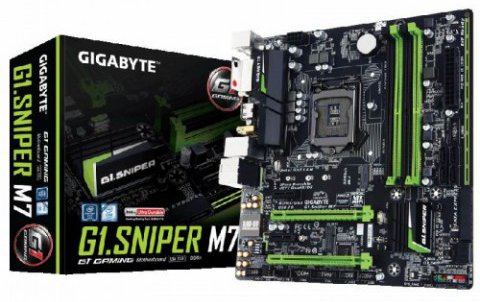

Gigabyte B150 G1.sniper M7 desktop motherboard has dual channel DDR4 4 DIMMs, 2 way graphics with premium PCIe lane, supports 6th generation Intel core processors, PCIe gen3 x4 M.2 connector, SATA express connectors, audio with built-in rear audio amplifier, 8-channel HD audio with high quality audio capacitors, audio noise guard with ambient LED trace path lighting, Intel GbE LAN with cFosSpeed internet accelerator software, triple USB DAC-UP ports,
APP center including easytune and cloud station utilities, gigabyte UEFI dualbios technology, support intel small business basics.
