Item | Motherboard |
---|---|
Model | ✅ B365M Gaming HD |
Brand | Gigabyte |
Motherboard Type | Gaming |
Chipset | Intel B365 Express Chipset |
Supported Processors | Support for 9th and 8th generation Intel Core i9 / i7 / i5 / i3 / Pentium / Intel Celeron Processor in the LGA1151 Package |
Front Side Bus | DDR4 |
Max Memory | Up to 32GB |
Onboard Audio | Realtek ALC887 Codec High Definition Audio 2/4/5.1/7.1-Channel |
Onboard LAN | Realtek GbE LAN Chip 10/100/1000 Mbit |
Connectors | 1 x 24-Pin ATX Main Power Connector 1 x 8-Pin ATX 12V Power Connector 1 x CPU Fan Header 1 x System Fan Header 1 x M.2 Socket 3 Connector 4 x SATA 6Gb/s Connector 1 x Front Panel Header 1 x Front Panel Audio Header 1 x USB 3.1 Gen 1 Header 2 x USB 2.0/1.1 Header 1 x Trusted Platform Module 1 x Serial Port Header 1 x Clear CMOS Jumper Connector 1 x PS/2 Mouse Port 1 x PS/2 Keyboard Port 1 x D-Sub Port 1 x HDMI Port 4 x USB 3.1 Gen 1 Port 2 x USB 2.0/1.1 Port 1 x RJ-45 Port 3 x Audio Jack |

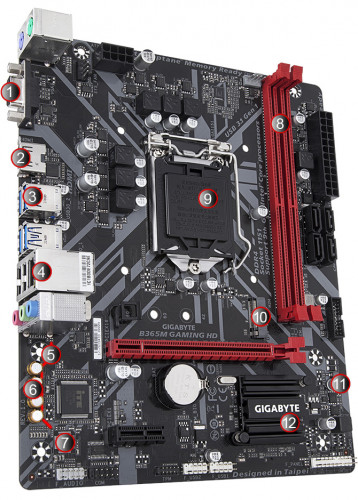

The Gigabyte B365M is a powerful gaming motherboard that supports 9th and 8th generation Intel Core i3, i5, i7, and i9 CPUs. The motherboard offers Ultra-Fast M.2 with PCIe Gen3 X4 and SATA connectivity and supports dual channel DDR4 memory up to 32GB. On DVI-D and D-sub connectors, it features 1GB of shared graphics memory and integrated Intel HD graphics with a maximum resolution of 1920 x 1200, as well as 4096x2160 @ 30 Hz on HDMI terminals.
