HDMI support
DVI-D port for multiple display
5-hybrid fan header with fan stop
dual ultra-fast NVMe PCIe Gen3 M.2
digital LED and RGB LED strips support
Dual-channel non-ECC unbuffered DDR4, 4 DIMMs
Intel GbE LAN with cFosSpeed internet accelerator software
5 x audio jack
2 x SMA antenna connector
4 x USB 3.1 gen 1 port
6-temperature sensor
High definition audio
2/4/5.1/7.1-channel
Support for S/PDIF out
iTE I/O controller chip
Realtek ALC1220-VB codec
Wi-Fi 802.11 a / b / g / n / ac
Supporting 2.4 / 5 GHz dual-band
Bluetooth V4.0

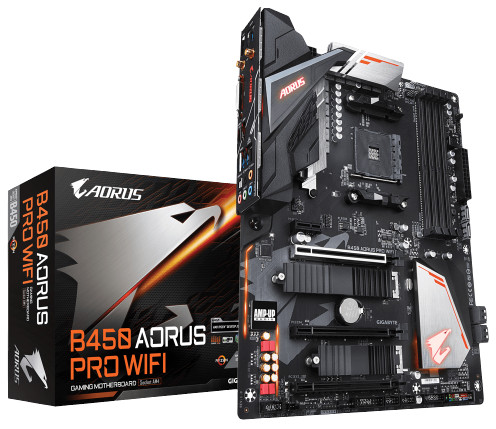

Item | Motherboard |
---|---|
Brand | Gigabyte |
Motherboard Type | Standard |
Chipset | AMD B450 |
Max Memory | 16 GB Maximum Shared Memory |
Onboard LAN | Realtek GbE LAN Chip |
ATX AMD AM4 socket, Ryzen series CPU supported dual-channel DDR4 maximum 64GB memory motherboard, Ryzen AMD 1st generation / 2nd generation / 3rd generation with Radeon vega graphics support, dual thermal guard and RGB fusion, multi-zone LED light show design, 1920 x 1200 for DVI-D and 4096 x 2160 for HDMI resolution, support for AMD quad-GPU crossfire and 2-way AMD crossfire technology.
