Item | Motherboard |
---|---|
Model | ✅ GA-B85M-D3V |
Brand | Gigabyte |
Motherboard Type | Standard |
Chipset | Intel B85 Express Chipset |
Supported Processors | Support for Intel Core i7 / i5 / i3 / Pentium / Celeron Processors in the LGA1150 Package |
Max Memory | 2 x DDR3 DIMM Sockets Supporting up to 16 GB of System Memory |
Onboard Video | Yes |
Onboard Audio | Realtek ALC887 Codec High Definition Audio 2 / 4 / 5.1 / 7.1-Channel |
Onboard LAN | Realtek GbE LAN Chip (10 / 100 / 1000 Mbit) |
Connectors | 1 x 24-pin ATX Main Power Connector 1 x 8-pin ATX 12V Power Connector 4 x SATA 6Gb/s Connectors 2 x SATA 3Gb/s Connectors 1 x CPU Fan Header 1 x System Fan Header 1 x Front Panel Header 1 x Front Panel Audio Header 1 x USB 3.0/2.0 Header 2 x USB 2.0/1.1 Header 1 x Serial Port Header 1 x Clear CMOS Jumper |
Other Features | Support for DDR3 1333 / 1066 / 800 MHz Memory Modules |

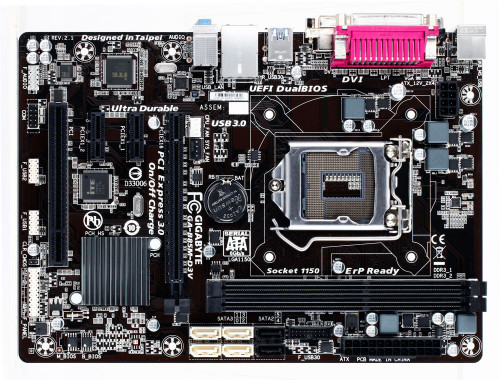

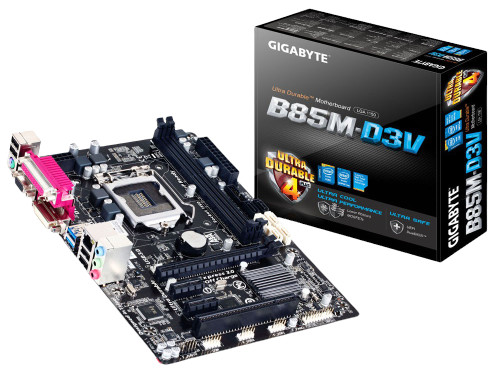

The Gigabyte GA-B85M-D3V 8-series motherboard comes with 4 plus technology which makes it extremely durable. This device includes high-quality audio capacitors as well as an audio noise guard. This latest Gigabyte GA-B85M-D3V has Intel CPU graphics that deliver much better image quality in the latest DX11 3D game applications for rising global performance.
