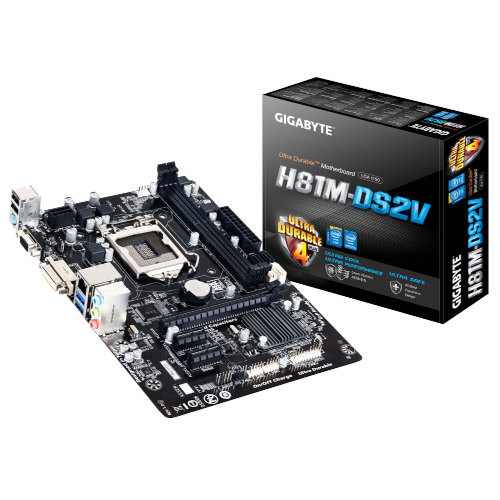

Gigabyte H81M-DS2V 4th Gen Motherboard
ID:
99668
Status: Sold Out
)
What is the price of Gigabyte H81M-DS2V in Bangladesh
The lowest price of Gigabyte H81M-DS2V in Bangladesh is Tk 3,500 only. Buy H81M-DS2V at low price in Bdstall. There is currently 0 seller.
Gigabyte H81M-DS2V Full Specification
| Item | Motherboard |
|---|---|
| Model | ✅ H81M-DS2V |
| Brand | Gigabyte |
| Motherboard Type | Standard |
| Chipset | Intel H81 Express Chipset |
| Supported Processors | Support for Intel Core i7 / i5 / i3 / Pentium Celeron 4th Gen processors in the LGA1150 package |
| Max Memory | 16GB |
| Onboard Video | D-Sub port |
| Onboard Audio | Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel |
| Onboard LAN | Realtek GbE LAN chip (10/100/1000 Mbit) |
- L3 cache varies with the CPU
- I/O Controller: iTE I/O Controller Chip
- Memory
- 2 x 1.5V DDR3 DIMM socket
- Dual channel memory architecture
- Support for DDR3 1600/1333 MHz memory modules
- Support for non-ECC memory modules
- Support for Extreme Memory Profile (XMP) memory modules
- Onboard Graphics:
- The maximum shared memory of 1 GB
- 1 x D-Sub port, supporting a maximum resolution of 1920 x 1200p
- 1 x DVI-D port, supporting a maximum resolution of 1920 x 1200p
- Audio
- Realtek ALC887 codec
- High Definition Audio
- 2/4/5.1/7.1-channel
- Expansion Slot
- 1 x PCI Express x16 slot, running at x16
- 2 x PCI Express x1 slots
- Storage Interface
- 2 x SATA 6Gb/s connectors (SATA3 0/1)
- 2 x SATA 3Gb/s connectors (SATA2 2/3)
- USB
- 2 x USB 3.0/2.0 port
- 6 x USB 2.0/1.1 port
- Internal I/O Connector
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 2 x SATA 6Gb/s connectors
- 2 x SATA 3Gb/s connectors
- 2 x USB 2.0/1.1 headers
- 1 x CPU fan header
- 2 x system fan headers
- 1 x front panel header
- 1 x front panel audio header
- 1 x Clear CMOS jumper
- Back Panel Connector
- 1 x PS/2 keyboard/mouse port
- 1 x D-Sub port
- 1 x DVI-D port
- 2 x USB 3.0/2.0 ports
- 2 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 3 x audio jacks (Line In, Line Out, Mic In)
- H/W Monitoring:
- System voltage detection
- CPU/System temperature detection
- CPU/System fan speed detection
- CPU/System overheating warning
- CPU/System fan fail warning
- CPU/System fan speed control
- BIOS:
- 1 x 64 Mbit flash
- Use of licensed AMI EFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Operating System: Support for Windows 10/8.1/8/7
- Form Factor: Micro ATX Form Factor, 24.4cm x 17.0cm
Gigabyte H81M-DS2V Description
The Gigabyte H-81M-DS2V motherboard will support the latest 4th generation Intel Core i7 / i5 / i3 / Pentium Celeron processors. This motherboard uses Ultra Durable 4 Plus Technology that provides record-breaking performance, efficient operation, and extended lifespan. It has DVI, D-SUB ports on the rear panel.
