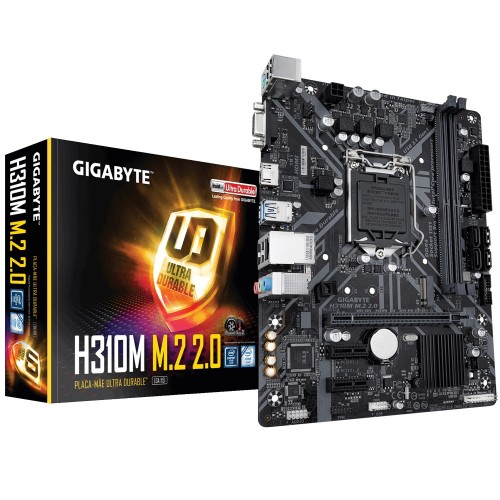

Gigabyte Intel H310M M.2 2.0 Ultra Durable Motherboard
ID:
142611
Status: In Stock
-10%
)
Price in Bangladesh
The lowest price of Gigabyte intel h310m m.2 2.0 ultra durable motherboard in Bangladesh is Tk 4,950 only. Buy from Dhaka at low price in Bdstall. There is currently 1 seller.
ElephantRoad
(Dhaka)
01873362357
৳ 4,950
12 hours ago
1 year parts
1 year service
NewFull Specification
| Item | Motherboard |
|---|---|
| Motherboard Type | Standard |
| Chipset | Intel H310 Express Chipset |
| Supported Processors | Supports 9th and 8th Gen Intel Core Processors |
| Max Memory | 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory |
| Onboard LAN | Realtek GbE LAN chip (10/100/1000 Mbit) |
- Key Features
- Dual Channel Non-ECC Unbuffered DDR4
- 8-Channel HD Audio with High Quality Audio Capacitors
- Ultra-Fast M.2 with PCIe Gen2 X2 & SATA interface
- GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
- HDMI 1.4, D-Sub Ports for Multiple Display
- CEC 2019 Ready, Save Power With a Simple Click
- Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
- All new GIGABYTE APP Center, simple and easy to use
- Anti-Sulfur Resistors Design
- CPU
- Support for 9th and 8th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1151 package
- L3 cache varies with CPU
- Chipset:
- Memory
- Dual-channel memory architecture
- Support for DDR4 2666/2400/2133 MHz memory modules
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
- To support 2666 MHz or XMP memory, you must install a 9th or 8th Generation Intel® Core i9/i7/i5 processor
- Onboard Graphics
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200 at 60 Hz
- 1 x HDMI port, supporting a maximum resolution of 4096x2160 at 30 Hz
- Support for HDMI 1.4 version and HDCP 2.2
- Maximum shared memory of 1 GB
- Audio
- Realtek Audio codec
- High Definition Audio
- 2/4/5.1/7.1-channel
- To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver
- Expansion Slots
- 1 x PCI Express x16 slot, running at x16
(The PCIEX16 slot conforms to PCI Express 3.0 standard) - 2 x PCI Express x1 slots
(The PCI Express x1 slots conform to PCI Express 2.0 standard)
- 1 x PCI Express x16 slot, running at x16
- Storage Interface
- 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe x2 SSD support)
- 4 x SATA 6Gb/s connectors
- USB
- 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
- 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header
- Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 4-pin ATX 12V power connector
- 4 x SATA 6Gb/s connectors
- 1 x CPU fan header
- 1 x system fan header
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB 3.1 Gen 1 header
- 1 x USB 2.0/1.1 header
- 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
- 1 x Clear CMOS jumper
- Back Panel Connectors
- 1 x PS/2 keyboard/mouse port
- 1 x D-Sub port
- 1 x HDMI port
- 2 x USB 3.1 Gen 1 ports
- 4 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 3 x audio jacks
- I/O Controllers: iTE I/O Controller Chip
- H/W Monitoring
- Voltage detection
- Temperature detection
- Fan speed detection
- Overheating warning
- Fan fail warning
- Fan speed control
- Whether the fan speed control function is supported will depend on the cooler you install
- BIOS
- 1 x 128 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Unique Features
- Support for APP Center
- @BIOS
- AutoGreen
- Cloud Station
- EasyTune
- Fast Boot
- Game Boost
- ON/OFF Charge
- Platform Power Management
- Smart Backup
- Smart Keyboard
- System Information Viewer
- USB Blocker
- Support for Q-Flash
- Support for Xpress Install
- Support for APP Center
- Bundle Software
- Norton Internet Security (OEM version)
- Realtek 8118 Gaming LAN Bandwidth Control Utility
- OS: Support for Windows 10 64-bit
- From Factor: Micro ATX Form Factor; 22.6cm x 17.4cm
Description
This Gigabyte Intel H310M M.2 2.0 Ultra Durable Motherboard comes with some smart features like dual channel non-ECC unbuffered DDR4, 8-channel HD audio with high quality audio capacitors, ultra-fast M.2 with PCIe Gen2 X2 & SATA interface, GIGABYTE exclusive 8118, gaming LAN with bandwidth management, HDMI 1.4, D-Sub ports for multiple display, CEC 2019 ready, save power with a simple click. Also, it supports 9th and 8th Gen Intel Core processors.
