Gigabyte Z270-HD3 6th 7th Gaming Motherboard
ID:
99740
Status: Sold Out
-11%
)
)
)
What is the price of Gigabyte Z270-HD3 in Bangladesh
The lowest price of Gigabyte Z270-HD3 in Bangladesh is Tk 5,750 only. Buy Z270-HD3 at low price in Bdstall. There is currently 0 seller.
Gigabyte Z270-HD3 Full Specification
| Item | Motherboard |
|---|---|
| Model | ✅ Z270-HD3 |
| Brand | Gigabyte |
| Motherboard Type | Gaming |
| Chipset | Intel Z270 Express |
| Supported Processors | Support for 7th and 6th generation Intel Core i7 / i5 / i3 / Pentium / Celeron processors in the LGA1151 |
| Max Memory | up to 64 GB |
| Onboard Audio | Realtek ALC887 codec |
| Onboard LAN | Intel GbE LAN chip (10/100/1000 Mbit) |
- L3 cache varies with the CPU
- Memory
- 4 x DDR4 DIMM socket
- Dual channel memory architecture
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
- Onboard Graphics
- 1 x D-Sub port, supporting a maximum resolution of 1920 x 1200 at 60 Hz
- 1 x DVI-D port, supporting a maximum resolution of 1920 x 1200 at 60 Hz
- 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 at 24Hz
- Audio
- Realtek ALC887 codec
- High Definition Audio
- 2/4/5.1/7.1-channel
- Support for S/PDIF Out
- Expansion Slot
- 1 x PCI Express x16 slot, running at x16 (PCIEX16)
- 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)
- 2 x PCI Express x1 slots
- 1 x PCI slot
- Multi-Graphics Technology
- Support for AMD Quad-GPU CrossFireX and 2-Way AMD CrossFire technologies
- Storage Interface
- 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support)
- 1 x SATA Express connector
- 6 x SATA 6Gb/s connectors
- Support for RAID 0, RAID 1, RAID 5, and RAID 10
- USB
- 8 x USB 3.1 Gen 1 ports
- 6 x USB 2.0/1.1 ports
- Internal I/O Connector
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x M.2 Socket 3 connector
- 1 x SATA Express connector
- 6 x SATA 6Gb/s connectors
- 1 x CPU fan header
- 3 x system fan headers
- 1 x front panel header
- 1 x front panel audio header
- 1 x S/PDIF Out header
- 2 x USB 3.1 Gen 1 headers
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module (TPM) header
- 1 x serial port header
- 1 x parallel port header
- 1 x Clear CMOS jumper

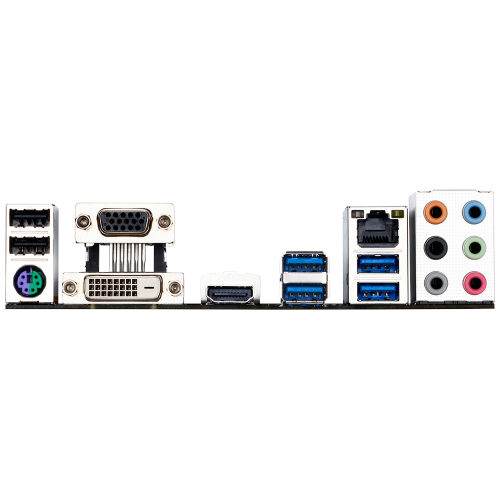

- Back Panel Connector
- 1 x PS/2 keyboard/mouse port
- 1 x D-Sub port
- 1 x DVI-D port
- 1 x HDMI port
- 4 x USB 3.1 Gen 1 ports
- 2 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 6 x audio jacks
- I/O Controller: iTE I/O Controller Chip
- H/W Monitoring
- Voltage detection
- Temperature detection
- Fan speed detection
- Overheating warning
- Fan fail warning
- Fan speed control
- BIOS
- 2 x 64 Mbit flash
- Use of licensed AMI UEFI BIOS
- Support for DualBIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Form Factor
- ATX Form Factor
- 30.5cm x 22.5cm
Gigabyte Z270-HD3 Description
Gigabyte Z270-HD3 motherboard supports 7th / 6th generation Intel Core processor. This motherboard comes with a 4-fan pin header and 6 temperature sensors. Also, all fan headers have been upgraded to hybrid fan headers. It supports high-current fans up to 24W with over-current protection. Its cooling device uses voltage mode and automatically changes voltage settings accordingly. It will support up to 2 amps with built-in overcurrent protection.
