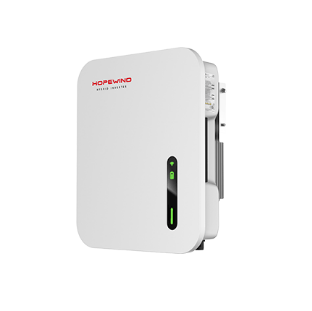

Hopewind HYNV10K-G01 Hybrid Solar Inverter IPS
ID:
142496
Status: In Stock
)
)
Price in Bangladesh
The lowest price of Hopewind hynv10k-g01 hybrid solar inverter ips in Bangladesh is Tk 220,000 only. Buy Hopewind HYNV10K-G01 from Dhaka at low price in Bdstall. There is currently 1 seller.
01771115656
4 days ago
10 years parts
10 years service
NewFull Specification
| Item | Solar IPS |
|---|---|
| Model | ✅ Hopewind HYNV10K-G01 |
- PV Input
- Recommended Max. PV Power: 15 kW
- Max. PV Input Voltage: 1000 V
- Operating Voltage Range: 200 – 950 V
- Startup Voltage: 250 V
- Rated Input Voltage: 600 V
- Number of MPP Trackers: 2
- Max. Input Current per MPPT: 27/20 A
- Max. Short-circuit Current: 40.5/30 A
- Battery
- Battery Type: Lithium battery
- Battery Voltage Range: 120 – 800 V
- Max. Charge/Discharge Current: 37 A
- Max. Charge/Discharge Power: 10 kW
- Communication Interfaces: CAN / RS485
- AC Output (Grid)
- Rated Output Power: 10 kW
- Max. Apparent Output Power: 11 kVA
- Rated Grid Voltage: 380V / 400V (3P + N + PE)
- Rated Grid Frequency: 50 Hz / 60 Hz
- Max. Output Current: 16.7 A
- Power Factor: >0.99 (0.8 leading – 0.8 lagging)
- THDi: <3>
- AC Output (Backup)
- Rated Output Power: 10 kW
- Max. Apparent Output Power: 11 kVA
- Backup Switch Time: 4 ms
- Rated Output Voltage: 380 V / 400 V (3P + N + PE)
- Rated Frequency: 50 Hz / 60 Hz
- THDv (Linear Load): <3>
- AC Input (Grid)
- Max. Input Power: 20 kW
- Rated Input Current: 30.3 A
- Rated Input Voltage: 380 V / 400 V (3P + N + PE)
- Rated Input Frequency: 50 Hz / 60 Hz
- Efficiency
- Max. Efficiency: 98.4%
- European Efficiency: 97.4%
- Protection & Function
- Grid Monitoring: Yes
- AC Short-circuit Protection: Yes
- DC Reverse Polarity Protection: Yes
- DC Overcurrent Protection (Battery): Yes
- DC Switch (PV): Yes
- Surge Protection: Yes
- Integrated AFCI: Optional
- General Data
- Topology : (Solar/Battery) Transformerless / transformerless
- Dimensions: 518 x 583 x 205 mm
- Weight: 27 kg
- Degree of Protection: IP66
- Operating Temperature Range: -25 – +60 ℃
- Operating Humidity Range: 0 – 95% (non-condensing)
- Max. Operating Altitude: 3000 m
- Cooling Method: Natural cooling
- Display: LED, APP, Web
- Communication: CAN / RS485
- DC Connection Type: MC4
- AC Connection Type: Plug and play connector
Description
Hopewind HYNV10K-G01 is a hybrid-type solar inverter IPS. It combines solar energy storage and power conversion. It allows solar panels to charge batteries while also supplying electricity to your home or workplace. This inverter can switch between solar power, battery power, and grid power, ensuring a stable energy supply even during outages.
