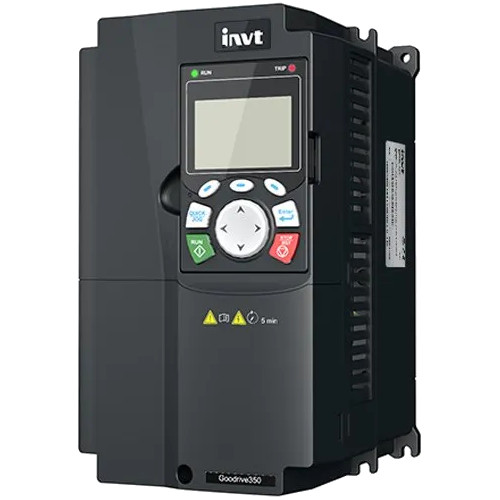

INVT GooDrive350 7.5-kW VFD Inverter
ID:
85124
Status: Sold Out
)
Price in Bangladesh
The lowest price of Invt goodrive350 7.5-kw vfd inverter in Bangladesh is Tk 55,000 only. Buy INVT GD350 7.5kW at low price in Bdstall. There is currently 0 seller.
Full Specification
| Item | IPS |
|---|---|
| Model | ✅ INVT GD350 7.5kW |
| IPS Type | Electric |
| Inverter Rated Power (Watt) | 7.5kW |
| Overloading Protection | Yes |
| Overcharging Protection | Yes |
| Short Circuit Protection | Yes |
| Display | LCD |
- Power input
- Voltage (V)
- AC 3PH 380V (-15%)-440V (+10%) rated voltage: 380V
- AC 3PH 520V (-15%)-690V (+10%) rated voltage: 660V
- Current (A): Refer to the rated value
- Frequency (Hz): 50Hz or 60Hz, allowable range: 47-63Hz
- Voltage (V)
- Power output
- Voltage (V): 0-input voltage
- Current (A): Refer to the rated value
- Power (kW): Refer to the rated value
- Frequency (Hz): 0-400Hz
- Running control performance
- Frequency setup mode
- Digital, analog, pulse frequency, multi-step speed running, simple PLC, PID, MODBUS communication, PROFIBUS communication, and so on
- Realize the switch-over between the set combination and the set channel
- Automatic voltage regulation function: Keep the output voltage constant
- Features over 30 kinds of fault protection functions: overcurrent, overvoltage, under-voltage, over-temperature, phase loss, overload, and so on
- Speed tracking restart function: Realize impact-free starting of the motor in rotating
- Frequency setup mode
- Technical control performance
- Control mode: SVPWM control, SVC, VC
- Motor type: Asynchronous motor, permanent-magnet synchronous motor
- Speed regulation ratio: Asynchronous motor 1: 200 (SVC); Synchronous motor 1: 20 (SVC), 1:100 (VC)
- Speed control precision: ±0.2% (SVC), ±0.02% (VC)
- Speed fluctuation: ±0.3% (SVC)
- Torque response: Less-than 20ms SVC), Less-than 10ms (VC)
- Torque control precision: 10% (SVC), 5% (VC)
- Starting torque
- Asynchronous motor: 0.25Hz/150% (SVC)
- Synchronous motor: 2.5 Hz/150% (SVC)
- 0Hz/200% (VC)
- Overload capacity
- 150% of rated current: 1min
- 180% of rated current: 10s
- 200% of rated current: 1s
- Peripheral interface
- Terminal analog input resolution: No more than 20mV
- Terminal digital input resolution: No more than 2ms
- Analog input: 2 inputs, Al1: 0-10V/ 0-20mA; Al2: -10-10V
- Analog output: 1 output, AO1: 0-10V/ 0-20mA
- Digital input
- Four regular inputs; maximum frequency: 1kHz; internal impedance: 3.3kQ
- Two high-speed inputs; maximum frequency: 50kHz
- Supports quadrature encoder input with speed measurement function
- Digital output
- One high-speed pulse output; maximum frequency: 50kHz
- One Y terminal open collector output
- Extension interface
- Three extension interfaces: SLOT1, SLOT2, SLOT3
- Expandable PG card, programmable extension card, communication card, I/O card, and so on
- Relay output
- Two programmable relay outputs.
- RO1A NO, RO1B NC, RO1C common port
- RO2A NO, RO2B NC, RO2C common port
- Contact capacity: 3A/AC250V, 1A/DC30V
- Protection level: IP20
- Pollution level: Level 2
- Cooling mode: Air cooling
- Brake unit
- Built-in brake unit for 380V 37kW and below models
- Optional built-in brake unit for 380V 45kW-110kW
- Optional external brake unit for 660V models
- EMC filter
- 380V models fulfill the requirements of IEC61800-3 C3
- The optional external filter should meet the requirements of 1EC61800-3 C2
- Installation mode: Support wall-mounting, floor-mounting, and flange-mounting
- Temperature of running environment: -10-50°C, derating is required if the ambient temperature exceeds 40°C
Description
INVT GooDrive350 7.5-kW energy-saving VFD inverter comes with dynamic torque control, reduced peak energy demand, power reduction when not needed, and controlled starting, stopping, and accelerating. It provides smooth motion for applications such as elevators and escalators. Additionally, it works with both synchronous and asynchronous motors and supports optional expansion cards for Ethernet, CANopen, Profibus DP, Bluetooth, and Profinet.
