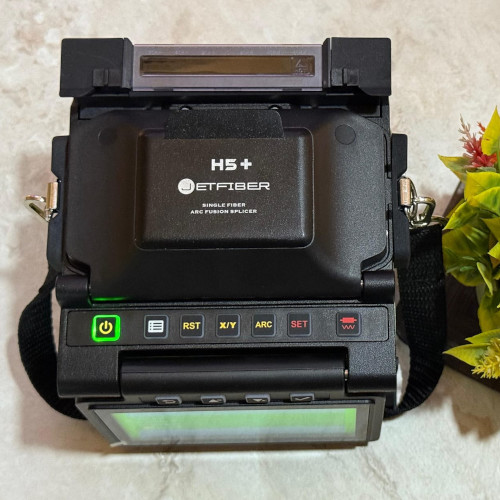

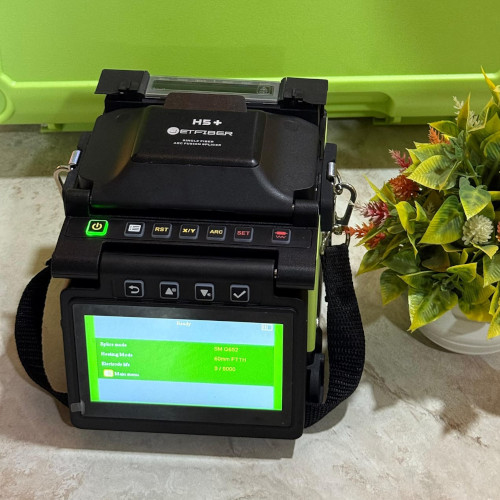

Jetfiber H5+ Touchscreen Splicing Machine
ID:
144337
Status: In Stock
-4%
)
)
)
Price in Bangladesh
The lowest price of Jetfiber h5+ touchscreen splicing machine in Bangladesh is Tk 105,000 only. Buy Jetfiber H5+ from Dhaka at low price in Bdstall. There is currently 1 seller.
ElephantRoad
(Dhaka)
01857909100
৳ 105,000
21 hours ago
1 year parts
3 years service
NewFull Specification
| Item | Splicer Machine |
|---|---|
| Model | ✅ Jetfiber H5+ |
| Splicing Time | 5 Second |
| Splicing Mode | Max. 100 |
| Splice Loss | SM:0.02dB, MM:0.01dB, DS:0.04dB, NZ/NZDS:0.04dB, BI:0.02dB |
| Motor | 4 |
| Fiber Type | SM(ITU-T G.652), MM (ITU-T G.651), DS (ITU-T G.653), NZ/NZDS (ITU-TG.655), BI (ITU-T G.657) |
| Fiber Cleave Length | 250µm cladding diameter 5-16mm, over 250µm cladding diameter 16mm |
| Fiber Diameter | Cladding diameter 80-150µm, coating 100~1000µm |
| Alignment Mode | Core Alignment |
| Fiber Magnification | 650x for X or Y single axis view, 280x both X& Y dual axis view |
| Heating Time | 15 |
| Tension Test | 2N |
| Return Loss | 60dB |
| Result Storage | Max.20000 |
| Display | Two 650x cameras observation, 4.3-inch high-light color touch screen |
| Battery | 4000mAh, more than 240 times splicing and heating |
| Electrodes Life Time | 5000 arc discharges |
| Interface | High speed USB |
| Operating Condition | Altitude 0-5000m, Humidity 0~95%, Temperature -20~50℃ |
| Power | AC100-240V, 50/60Hz |
| Dimension | 136 x 141 x 136mm |
Description

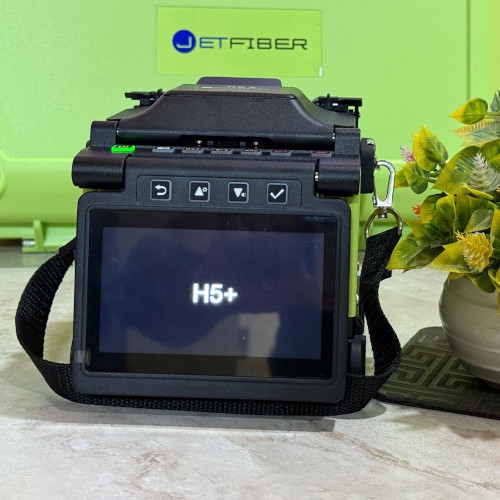

This Jetfiber H5+ features a 4.3-inch high-resolution color touch screen display with two 650x cameras for observation. It offers a 4000mAh battery capacity that provides more than 240 hours of splicing and heating. Also, it includes features of Core alignment mode, 300x for X or Y single-axis view fiber magnification, 60dB return loss, 5000 arc discharges, AC100-240V, 50/60Hz voltage range, and high-speed USB interface.
