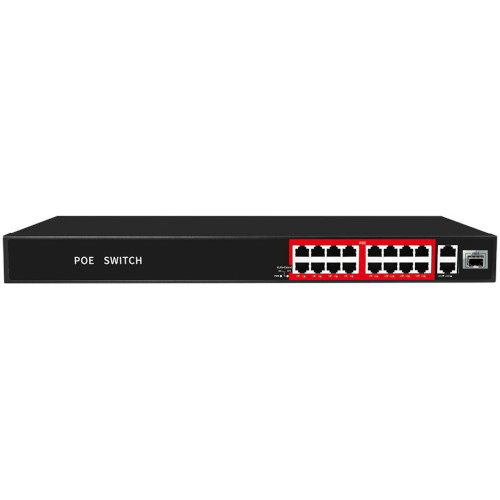

Jovision JVS-S19-16P 16 Port PoE Network Switch
ID:
91352
Status: Sold Out
)
What is the price of Jovision JVS-S19-16P in Bangladesh
The lowest price of Jovision JVS-S19-16P in Bangladesh is Tk 13,500 only. Buy JVS-S19-16P at low price in Bdstall. There is currently 0 seller.
Jovision JVS-S19-16P Full Specification
| Item | Network Switch |
|---|---|
| Model | ✅ JVS-S19-16P |
| Brand | Jovision |
| LAN Connectivity | RJ45 |
| Ports | 100M PoE 16 100M Cascade RJ45 2 & 1SFP |
| Uplink Port | 2 Ports 100Mbps RJ45 |
| Speed | Ethernet 10Mbps half-duplex, 20Mbps full duplex Fast Ethernet 100Mbps half-duplex, 200Mbps full duplex |
- Provides 8 10 / 100m adaptive RJ45 ports
- All ports support automatic flip (Auto MDI/MDI-X) functionality
- All ports have line speed forwarding capability
- Autonomous Learning and Aging supporting MAC address
- Full metal housing, full load 210W
- Plug and play
- Input Power Supply
- AC input: 220 V 50 / 60 HZ
- Power: 52V-90W
- Supported Standards & Protocols
- IEEE 802.3 Ethernet Media Access Control Protocol
- IEEE 802.3i 10BASE-T Ethernet
- IEEE 802. 3u 100BASE-TX Fast Ethernet
- IEEE 802.3af realizes Ethernet equipment Power supply by Ethernet data Line pair or device
- IEEE 802.3at realizes
- IEEE 802.3x flow Control of Ethernet equipment by Ethernet data Line pair or device
- Default System Mode: General switch / VLAN isolation 250m transmission
- Data Signaling Rate
- Ethernet 10Mbps half-duplex
- 20Mbps full-duplex Fast Ethernet 100Mbps half-duplex 200Mbps full duplex
- Network Medium
- 10 Base-T: 2 to 3 classes (Cat3) or more UTP/STP (≤ 100m)100Base-TX: 2 to 5 Cat5 or more UTP/STP (≤ 100m)
- 10Base-TX: 2 to 5 classes (Cat6) or more UTP/STP (≤ 250m)
- Dimension: 440 x 180 x 45mm
Jovision JVS-S19-16P Description
This Jovision JVS-S19-16P PoE switch has one 100-megabit standard and eight 10/100M adaptive RJ45 ports that can supply PoE power to port 1~6 and can be used as Ethernet power supply equipment. This switch can automatically detect IEEE 802.3at/af-compliant devices across all ports and power them on the network. Its other modes include normal switch mode, VLAN isolation, and 250m transmission. It also supports full-duplex IEEE802.3X flow control and backpressure semi-duplex flow control.
