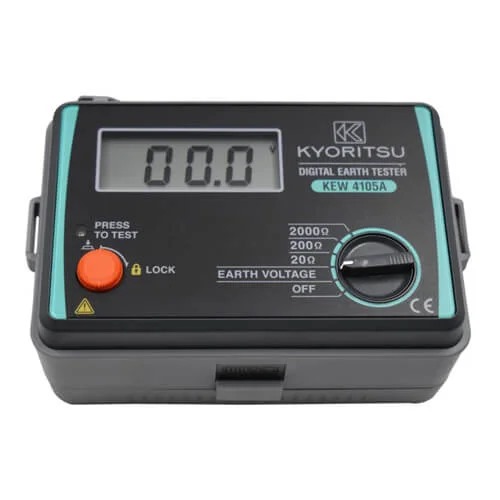

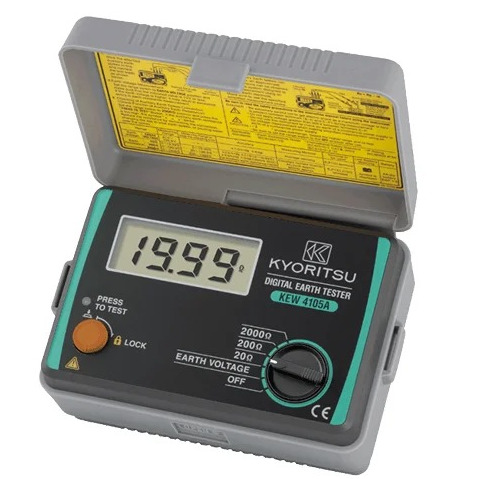

Kyoritsu 4105A Digital Earth Tester
ID:
40461
Status: Sold Out
-3%
)
)
)
Price in Bangladesh
The lowest price of Kyoritsu 4105a digital earth tester in Bangladesh is Tk 36,500 only. Buy Kyoritsu 4105A at low price in Bdstall. There is currently 0 seller.
Full Specification
| Item | Other Meters |
|---|---|
| Model | ✅ Kyoritsu 4105A |
- Technical Information
- Earth resistance measurement
- Measurement: 20Ω-2000Ω
- Measuring range: 0.00 – 1999Ω
- Display range: 0.00 – 19.99Ω, 0.0 – 199.9Ω 0 – 1999Ω
- Accuracy: ±2 percent rdg±0.1 Ω ±2 percent rdg±3dgt
- Earth voltage measurement
- Measuring range: 0 – 200 V AC (50,60Hz)
- Display range: 0.0 – 199.9 V
- Accuracy: ±1 rdg±4dg
- Earth resistance measurement
- Overload protection
- Earth resistance: 280V AC (10 seconds)
- Earth voltage: 300V AC (1 minute)
- Applicable standards
- IEC 61010-1 CAT Ⅲ300 V Pollution degree 2
- IEC 61010-2-030, IEC 61557-1,5, IEC 60529 (IP54)
- Power source: 6 x R6AA 1.5V
- Origin: Thailand
- Physical
- Dimension 105L x 158W x 70D mm
- Weight Approx. 550g
Description
This Kyoritsu 4105A digital earth resistance tester has an LCD screen, metric measurement system, 20 / 200 / 2000Ω earth resistance ranges, 3700V AC withstand voltage, 9V DC power source, dust and drip proof, 105 x 158 x 70 mm dimensions, and 550 g weight.
