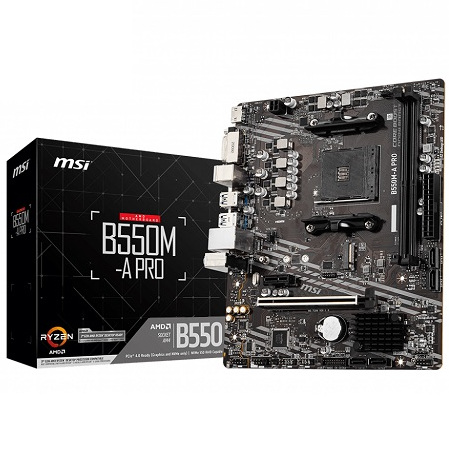

MSI B550M-A PRO 64GB DDR4 AMD AM4 Micro ATX Motherboard
ID:
139439
Status: In Stock
)
What is the price of MSI B550M-A PRO in Bangladesh
The lowest price of MSI B550M-A PRO in Bangladesh is Tk 10,900 only. Buy B550M-A PRO from Dhaka at low price in Bdstall. There is currently 1 seller.
01914738856
5 days ago
3 years parts
3 years service
NewMSI B550M-A PRO Full Specification
| Item | Motherboard |
|---|---|
| Model | ✅ B550M-A PRO |
| Brand | MSI |
| Motherboard Type | Standard |
| Chipset | AMD B550 Chipset |
| Supported Processors | Supports AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors |
| Max Memory | 64GB |
| Onboard Audio | Realtek ALC892/ALC897 Codec |
- Expansion Slots
- PCI
- PCI-E X16 x 1
- PCI-E (Gen4 / Gen3)
- M.2 Socket: 1 x M.2 Socket
- PCI
- Memory
- Type: DDR4
- Slots
- 1x PCIe 3.0 x1 slot 1
- 1x PCIe 4.0/3.0 x16 slot
- The supported specification depends on the installed processor
- Supported Memory
- 2x DDR4 memory slots, support up to 64GB 1
- Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
- Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE
- 1DPC 1R max speed 4600 MHz
- 1DPC 2R max speed 3866 MHz
- Dual-channel memory architecture
- Supports non-ECC UDIMM memory
- Supports ECC UDIMM memory (non-ECC mode)
- Supports unbuffered memory
- Graphics
- 1x HDMI 2.1 port, supports a maximum resolution of 4096 x 2160 at 60Hz
- 1x DVI-D port, supports a maximum resolution of 1920 x 1200 at 60Hz
- Available for the processor with integrated graphics
- Graphics specifications may vary depending on the CPU installed
- Connector & Ports
- HDMI: 1 x HDMI
- USB (s)
- AMD B550 Chipset
- 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector
- 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
- AMD Processor
- 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
- LAN Port (s)
- 1x Realtek RTL8111H Gigabit LAN
- Supported Storage
- AMD B550 Chipset
- 4x SATA 6Gb/s ports
- 1x M.2 slot (Key M) (from AMD Processor)
- Supports PCIe 4.0/ 3.0
- Supports SATA 6Gb/s
- Supports 2242/ 2260/ 2280 storage devices
- The supported specification depends on the installed processor
- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
- Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
- Audio: 7.1-Channel High Definition Audio
- Internal I/O Ports
- 1x 24-pin ATX main power connector
- 1x 4-pin ATX 12V power connector
- 4x SATA 6Gb/s connectors
- 1x M.2 slots (M-Key)
- 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
- 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1x 4-pin CPU fan connector
- 1x 4-pin system fan connectors
- 1x Front panel audio connector
- 2x System panel connectors
- 1x Chassis Intrusion connector
- 1x Clear CMOS jumper
- TPM (Trusted Platform Module ): 1 x TPM module connector
MSI B550M-A PRO Description
MSI B550M-A PRO DDR4 AMD AM4 Micro ATX Motherboard comes with a maximum storage capacity of up to 64 GB. Also, it supports AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors.
