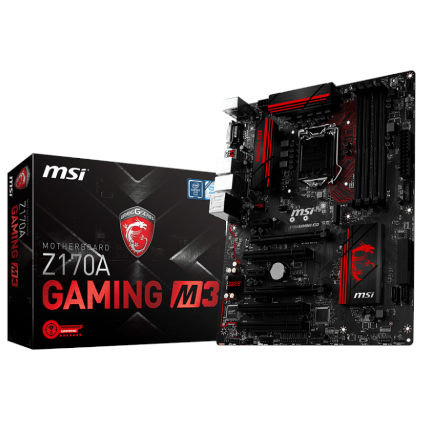

MSI Z170a Gaming M3 Motherboard
ID:
97654
Status: Sold Out
-21%
)
)
What is the price of MSI Z170a Gaming M3 in Bangladesh
The lowest price of MSI Z170a Gaming M3 in Bangladesh is Tk 5,500 only. Buy Z170a Gaming M3 at low price in Bdstall. There is currently 0 seller.
MSI Z170a Gaming M3 Full Specification
| Item | Motherboard |
|---|---|
| Model | ✅ Z170a Gaming M3 |
| Brand | MSI |
| Motherboard Type | Gaming |
| Chipset | Intel Z170 Express |
| Supported Processors | Supported 6th & 7th gen |
| Max Memory | 64GB |
| Onboard Audio | Realtek ALC1150 Codec, 7.1-Channel High Definition Audio, Supports S/PDIF output |
| Onboard LAN | 1 x Killer E2400 Gigabit LAN controller |
- Main Memory
- 4 x DDR4 memory slot
- Supports DDR4 3600(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400/ 2133 MHz
- Dual channel memory architecture
- Supports ECC, un-buffered memory
- ECC UDIMM memory (non-ECC mode)
- Supports Intel Extreme Memory Profile (XMP)
- Slots
- 2 x PCIe 3.0 x16 slots
- 2 x PCIe 3.0 x1 slots
- 3 x PCI slots
- Onboard Graphics
- 1 x HDMI port
- 1 x DVI-D port
- Multi-GPU
- Supports 2-Way AMD CrossFire Technology
- Storage
- Intel Z170 Express Chipset
- 6 x SATA 6Gb/s ports
- 1 x M.2 Key M Socket
- 2 x SATAe port
- USB
- Intel Z170 Express Chipset
- 2 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) port
- 6 x USB 3.1 Gen1 (SuperSpeed USB) ports
- 4 x USB 2.0 (High-speed USB) ports
- Internal I/O Connector
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 6 x SATA 6Gb/s connectors
- 2 x SATAe connectors
- 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports)
- 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
- 2 x 4-pin CPU fan connectors
- 3 x 4-pin system fan connectors
- 1 x Front panel audio connector
- 2 x Front panel connectors
- 1 x TPM module connector
- 1 x Chassis Intrusion connector
- 1 x Clear CMOS jumper
- 1 x Serial port connector
- 1 x Parallel port connector
- 1 x Slow mode switch
- Back Panel I/O Port
- 1 x PS/2 keyboard/ mouse port
- 2 x USB 2.0 ports
- 1 x DVI-D port
- 1 x HDMI port
- 2 x USB 3.1 Gen2 ports
- 4 x USB 3.1 Gen1 ports
- 1 x LAN (RJ45) port
- 1 x Optical S/PDIF OUT connector
- 5 x OFC audio jacks
- Dimension
- 12 x 9.6 inch
- 30.4 x 24.4cm
- ATX Form Factor
- Mounting: 9 mounting holes
MSI Z170a Gaming M3 Description
MSI Z170a Gaming M3 motherboard supports 6th / 7th generation Intel Core i3 / i5 / i7 / Pentium and Celeron processors and socket LGA1151. The motherboard comes with 1 x HDMI port that supports a maximum resolution of 4096 x 2160 at 24Hz. The motherboard also comes with the Realtek ALC1150 codec that supports 7.1-channel high-definition audio and S/PDIF output.
