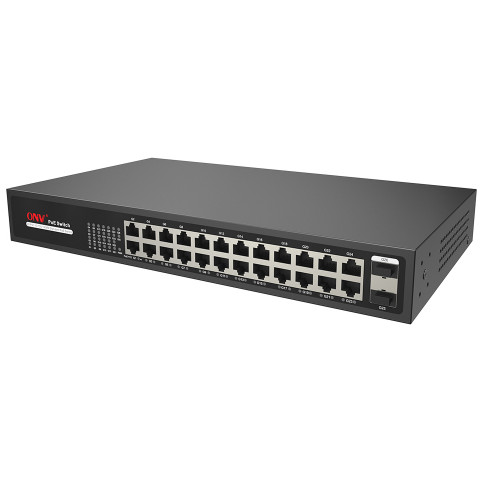

ONV H3024PF 26-Port Full Gigabit SFP PoE Fiber Switch
ID:
142016
Status: In Stock
-12%
)
)
Price in Bangladesh
The lowest price of Onv h3024pf 26-port full gigabit sfp poe fiber switch in Bangladesh is Tk 23,500 only. Buy from Dhaka at low price in Bdstall. There is currently 1 seller.
01400443911
1 day ago
NewFull Specification
| Item | Network Switch |
|---|---|
| LAN Connectivity | PoE |
| Ports | 24 x 10/100/1000 Mbps PoE + 2 x Gigabit SFP Fiber Ports |
| Uplink Port | 2 x 1000Base-X uplink SFP fiber ports (Data) |
| Speed | 52Gbps |
| Protocol | IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x |
- External Ports
- Full/ half duplex MDI/ MDI-X self-adaption
- 1-16/ 1-24 can support 10/100/1000Base-T auto-sensing
- Twisted Pair Transmission
- 10BASE-T: Cat3, 4, 5 UTP (≤100 meters)
- 100BASE-TX: Cat5 or later UTP (≤100 meters)
- 1000BASE-T: Cat5e or later UTP (≤100 meters)
- Optical Fiber Port
- Single fiber/ dual fiber optical module. LC)
- The default does not include the optical module
- Optical Cable/ Distance
- Multi-mode: 850nm/ 0-550m
- Single-mode
- 1310nm/ 0-40km
- 1550nm/ 0-120km
- Chip
- MAC: 8K
- Buffer Memory: 4M
- Forwarding Mode: Store and forward
- Switching Capacity: 52Gbps (non-blocking)
- Forwarding Rate 64byte: 26.78Mpps
- LED Indicator
- Power: PWR (Green)
- Network: Link (Green)
- PoE: PoE (Green)
- Fiber port: G1/G2 (Green)
- PoE & Power Supply
- PoE Port: 1-16
- Power Supply Pin: 1/2 (+) 3/6 (-)
- Max Power Per Port: 30W, IEEE 802.3 af/at
- Total PWR / Input Voltage: 250W /(AC100-240V)
- Power Consumption
- Standby: 15W
- Full load: 240W
- Power Supply
- Built-in power supply,
- AC100~240V 50-60Hz, 4.1A
- Lightning Protection
- 4KV 8/20us
- Protection level: IP30
- Physical Parameter
- Operation Temp/ Humidity
- -20°C~+55°C, 5%~90% RH non condensing
- Storage Temp/ Humidity
- -40°C~+75°C, 5%~95% RH non condensing
- Dimension: 270 x 181 x 44.5mm
- Net /Gross Weight: 1.6kg
- Installation: Desktop, wall mount, 1U/19” cabinet
- Operation Temp/ Humidity
- Certification
- CCC, CE mark, commercial
- CE/LVD EN62368-1
- FCC Part 15, RoHS
Description
This ONV H3024PF is an unmanaged fiber network switch with 26 x 10/100/1000M adaptive RJ45 and 2 x 1000M uplink SFP ports. The PoE ports on this switch can automatically detect power-consuming equipment that supplies power through network cables. Its 1 to 16 of these switches support the IEEE 802.3 af/PoE standard and power up to 30W per PoE port, and the maximum PoE output power is 250W.
