Philips Trilogy Evo ICU / PICU Ventilator
ID:
137945
Status: In Stock
-4%
)
)
)
)
Price in Bangladesh
The lowest price of Philips trilogy evo icu / picu ventilator in Bangladesh is Tk 1,000,000 only. Buy from Dhaka at low price in Bdstall. There is currently 2 sellers.
Shahbag
(Dhaka)
01672539103
৳ 1,050,000
16 days ago
1 year parts
1 year service
New
Full Specification
| Item | Medical Equipment |
|---|---|
| Brand | Philips |
- Ventilation modes
- A/C-PC: Assist control (pressure control)
- A/C-VC: Assist control (volume control)
- CPAP: Continuous positive airway pressure
- PSV: Pressure support ventilation
- S/T: Spontaneous/timed ventilation
- SIMV-PC: Synchronized intermittent mandatory ventilation (pressure control)
- SIMV-VC: Synchronized intermittent mandatory ventilation (volume control)
- MPV-PC: Mouthpiece ventilation (pressure control)
- MPV-VC: Mouthpiece ventilation (volume control
- Oxygen
- Low flow: 0 to 30 l/min; maximum 10 psi
- High pressure: 280 to 600 kPa (41 to 87 psi
- Measured and displayed patient parameters
- Tidal volume: 0 to 2000 ml
- Minute ventilation: 0 to 30 l/min
- Leak: 0 to 200 l/min
- Respiratory rate (RR): 0 to 90 BPM
- Peak inspiratory flow (PIF): 0 to 200 l/min
- Peak inspiratory pressure (PIP): 0 to 90 cmH2O
- Mean airway pressure: 0 to 90 cmH2O
- Percentage spontaneous triggered breaths: 0 to 100%
- I: E ratio: 9.9:1 to 1:9.9
- Dynamic compliance: 1 to 100 ml/cmH2O
- Dynamic resistance: 5 to 200 cmH2O/l/sec
- Dynamic plateau pressure: 0 to 90 cmH2O
- Auto-PEEP: 0 to 20 cmH2O
- FiO2 with FiO2 sensor: 21% to 100%
- SpO2 with pulse oximeter accessory: 0 to 100%
- Pulse rate with pulse oximeter accessory: 18 to 321 beats per minute
- EtCO2 with CO2 accessory: 0 to 150 mmHg
- Electrical
- AC input voltage: 100V-240V
- Frequency: 50/60 Hz
- Current: 1.7 - 0.6A
- DC input voltage: 12/24V 6.5A
- Internal and detachable Li-ion batteries
- 15 hours’ nominal total run time per method
- Charge time for detachable and internal battery
- From 0% to 80%: 2.5 hours
- From 0% to 100%: 3.5 hours
- Alarm
- Inspiratory Pressure: PEEP+1 to 89 cmH2O
- Tidal Volume: Off, 10 - 2000 ml
- Minute Ventilation: Off, 0.2 - 30 L/min
- Respiratory Rate: Off, 1 - 90 BPM
- Circuit Disconnection: Off, 5 - 60 sec
- Apnea Interval: 5 to 60 sec
- No trigger: Off 0.5-15 min (ONLY in MPV)
- Controls
- AVAPS with passive circuit: SV, S/T, and A/C-PC modes only
- Tidal volume
- 35 - 2000 ml on Dual Limb and Active Flow circuits
- 50 - 2000 ml on passive and active PAP circuits
- Breath rate: 0 - 80 BPM
- PEEP
- 0 - 35 cmH20 for active circuits,
- 3 - 25 cmH20 for passive circuits
- EPAP/CPAP: 3 to 25 cmH20
- IPAP: 3 to 60 cmH20
- Pressure support/pressure control: 0 to 60 cmH20
- Inspiratory time: 0.3 - 5.0s
- Rise time: 0 to 6
- Triggering and cyclin
- Off, Auto Trak, Sensitive, Auto Trak, and Flow Trigger
- Flow trigger sensitivity: 0.5 - 9 l/min
- Flow cycle sensitivity: 10% - 90% of peak flow
- Flow pattern: Square, Ramp
- FiO2: 21% - 100%
- Inspiratory time min/max: 0.3 to 3.0 sec
- Backup ventilation: On-Off
- Made in USA
- Physical
- Screen dimensions: 8"
- Weight: 5.2 kg
- Size: 16.5 cm D x 28.6 cm W x 24.5 cm
Description

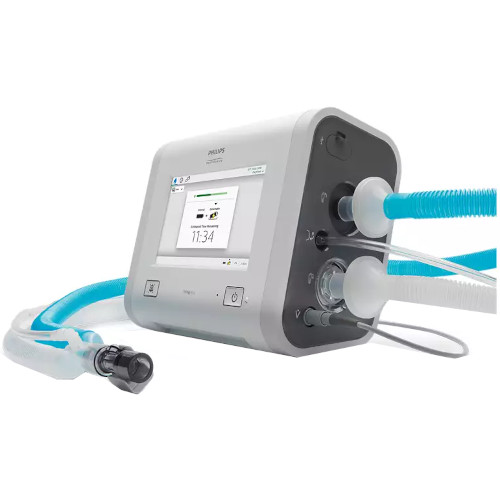

The Philips Trilogy Evo ICU / PICU Ventilator Trilogy Evo is designed to provide non-invasive and invasive ventilator support to chronic and critical patients. It is powered by an internal and removable battery that offers 15 hours of battery life. This ventilator transmits data via Bluetooth using the cloud-based tool Care Orchestrator and allows for data download via USB drive.
