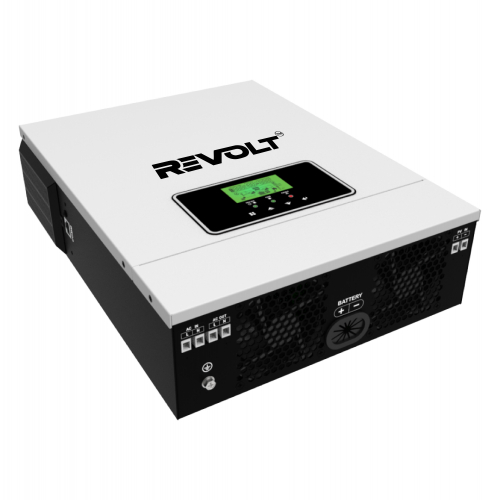

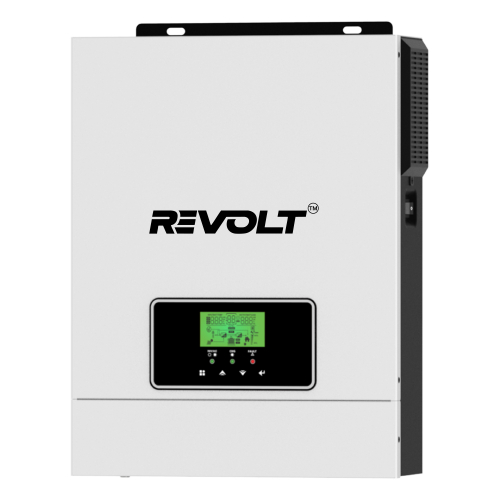

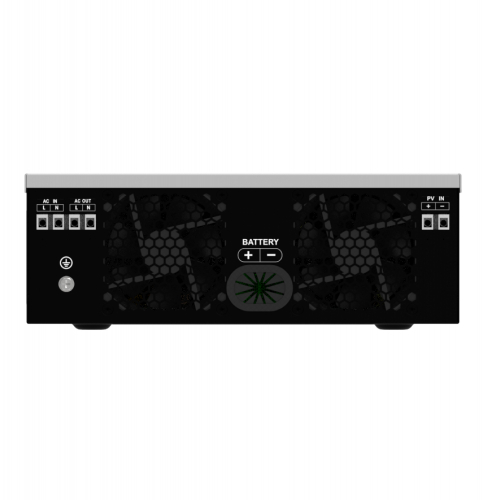

REVOLT 3.2kVA Hybrid Solar Inverter IPS
ID:
139574
Status: In Stock
-9%
)
)
)
)
Price in Bangladesh
The lowest price of Revolt 3.2kva hybrid solar inverter ips in Bangladesh is Tk 33,500 only. Buy NML-3200-24V from Dhaka at low price in Bdstall. There is currently 1 seller.
01771115656
2 days ago
1 year parts
2 years service
NewFull Specification
| Item | Solar IPS |
|---|---|
| Model | ✅ NML-3200-24V |
- Pure Sine Wave Inverter
- Configurable Solar or Grid priority
- Wide AC input voltage range (90- 280V) for stable operation
- Compatible with grid or generator
- Compatible with 24V battery system (Lead Acid / Lithium)
- Configurable battery charging current (10A-80A)
- Configurable AC/Solar charging priority
- MPPT range: 30-450V for enhanced solar efficiency
- Cold start function
- Overload / over-temperature / short-circuit protection
- AC Input
- Voltage: 230VAC
- Selectable Voltage Range
- 170-280VAC(Personal Computer)
- 90-280VAC(Home Appliances)
- Frequency Range: 50Hz/60Hz(Auto Sensing)
- Battery & AC Charger
- Battery Voltage: 24VDC
- Floating Charge Voltage: 27VDC
- Overcharge Protection: 33VDC
- Maximum AC Charge Current: 60A
- Solar Charger
- Maximum PV Array Power: 3000W
- MPPT Range at Operating Voltage: 30- 450VDC
- Maximum PV Array Open Circuit Voltage: 4500VDC
- Maximum Charge Current: 80A
- AC Output
- AC Voltage Resolution: 230VAC+_5%
- Surge Power: 6400VA
- Efficiency(Peak)PV to INV: 98%
- Efficiency(Peak)Battery to INV: 94%
- Transfer Time: 10ms(For personal computer), 20ms(For home appliances)
- Operating Environment
- Humidity: 5% to 95% Relative Humidity(Non-condensing)
- Operating Temperature: -10 to 50 degree Celsius
- Physical
- Dimension: 357 x 273 x 95mm
- Net Weight: 5 Kg
- Communicating Interface: RS232
Description

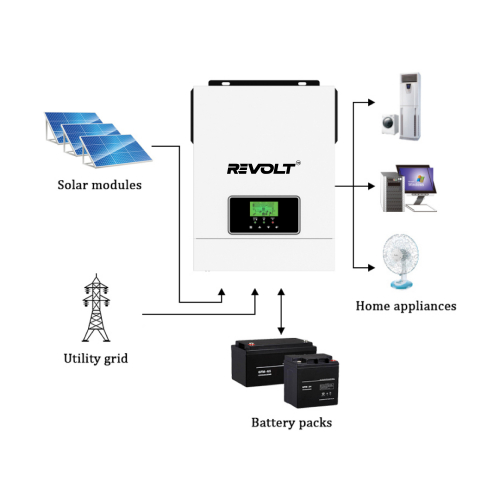

The REVOLT NML-3200-24V Hybrid Solar Inverter is a power conversion tool that can combine the functions of a solar inverter and a battery inverter into one single unit. It can easily operate in both grid-connected and standalone modes. Also, it has a wide AC input voltage range (90- 280V) for stable operation, compatible with a 24V battery system, MPPT range up to 30- 450V for enhanced solar efficiency, as well as overload, over-temperature, and short-circuit protection.
