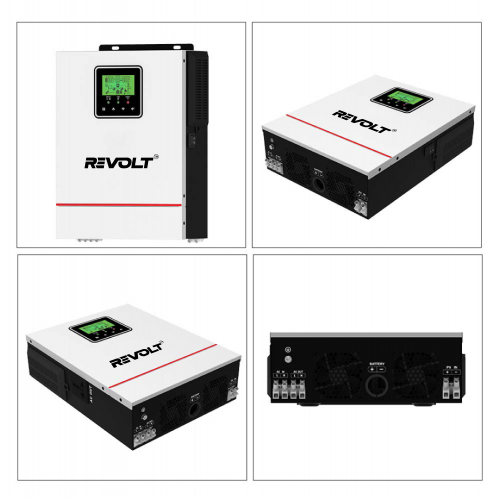

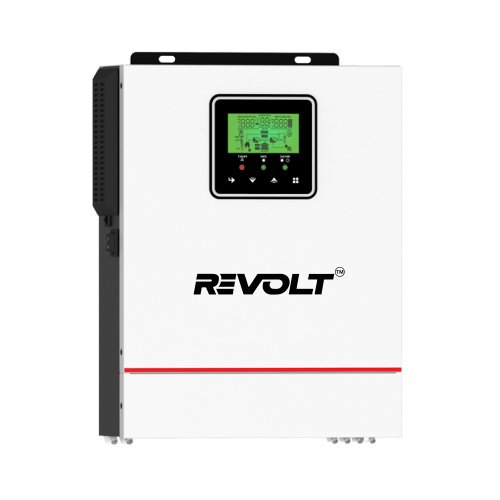

Revolt NMS-1000W-M-12V 1-kVA Hybrid Solar IPS Inverter
ID:
139566
Status: In Stock
-11%
)
)
Price in Bangladesh
The lowest price of Revolt nms-1000w-m-12v 1-kva hybrid solar ips inverter in Bangladesh is Tk 19,500 only. Buy Revolt NMS-1000W-M-12V from Dhaka at low price in Bdstall. There is currently 1 seller.
01771115656
2 days ago
1 year parts
2 years service
NewFull Specification
| Item | Solar IPS |
|---|---|
| Model | ✅ Revolt NMS-1000W-M-12V |
- Pure Sine Wave Inverter
- 1000W/1000VA capacity to meet demanding energy needs
- Configurable Solar or Grid priority
- Wide AC input voltage range (90-280V) for stable operation
- Compatible with grid or generator
- Compatible with 12V battery system (Lead Acid / Lithium)\Configurable battery charging current (10A-40A)
- Configurable AC/Solar charging priority
- MPPT Range: 20-150V for enhanced solar efficiency
- Cold start function
- Overload / over-temperature / short-circuit protection
- AC Input
- Rated Power: 1000W/1000VA
- Voltage: 230V AC
- Selectable Voltage Range: 170-280VAC(For Personal Computers)
- 90-280VAC(For Home Appliances)
- Frequency Range: 50 Hz/60Hz(Auto sensing)
- AC Output
- AC Voltage Resolution: 230VAC+_5%
- Surge Power: 2000VA
- Efficiency(Peak)PV to INV: 98%
- Efficiency(Peak)Battery to INV: 94%
- Transfer Time: 10ms(For personal computer), 20ms(For home appliances)
- Battery & AC Charger
- Battery Voltage: 24VDC
- Floating Charge Voltage: 27VDC
- Overcharge Protection: 33VDC
- Maximum AC Charge Current: 60A
- Solar Charger
- Maximum PV Array Power: 600W
- MPPT Range at Operating Voltage: 30-450VDC
- Maximum PV Array Open Circuit Voltage: 4500VDC
- Maximum Charge Current: 80A
- Operating Environment
- Humidity: 5% to 95% Relative Humidity(Non-condensing)
- Operating Temperature: -10 to 50 degrees Celsius
- Physical
- Dimension: 290 x 240 x 91mm
- Net Weight: 3 Kg
Description
The Revolt NMS-1000W-M-12V is a hybrid solar inverter IPS. It comes with a 1-kVA inverter rated power, 1000W rated output voltage. Also, it includes pure sine wave inverter technology with overload, over-temperature, and short-circuit protection. Moreover, it has a maximum PV array power of 600W, where an MPPT range at an operating voltage of 30- 450V DC.
