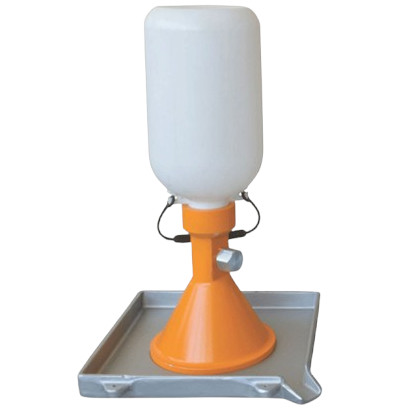

Sand Density Cone Apparatus
ID:
128329
Status: In Stock
)
Price in Bangladesh
The lowest price of Sand density cone apparatus in Bangladesh is Tk 7,300 only. Buy from Dhaka at low price in Bdstall. There is currently 1 seller.
01839689255
13 hours ago
NewFull Specification
- One Bases Platter
- Sand Density Cone Set: 6.5`
- ASTM Standard, ASTM D1556, AASHTO T181, T191
- Diameter: 165mm
- Plastic container: 5L
- Basic Steps of the Sand Density Cone Test are as follows
- Calibrate the apparatus using the calibrating container to ensure accurate results
- Dig a hole in the ground at the test location
- Place the base plate at the bottom of the hole
- Place the sand density cone on top of the hole and fill it with sand
- Allow the sand to flow into the hole while keeping track of the volume of sand used
- Measure the mass of the remaining sand in the cone after the test
- Calculate the in-place density of the soil using the volume of the hole and the mass of the sand
- Size: 30mm x 30mm x 60mm
- Weight: 1.5kg
- Manufacture: Bangladesh
- Package Includes
- Sand Density Cone Funnel
- Sand Density Cone
- Base Plate
- Calibrating Container
Description
This Sand Density Cone Set is a testing apparatu which is used in geotechnical engineering and it can determine the in-place density of compacted soils.It has a metallic funnel with a aperture at its bottom which allows a specified volume of sand to flow into a test hole in the ground. Ideal usage for quality control and quality assurance purposes in road construction, embankments, or civil engineering projects.
