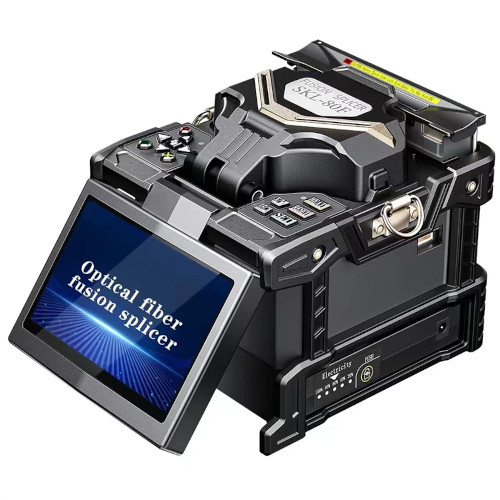

SKL 80F Optical Fiber Fusion Splicer Machine
ID:
144790
Status: In Stock
-16%
)
)
)
)
Price in Bangladesh
The lowest price of Skl 80f optical fiber fusion splicer machine in Bangladesh is Tk 67,000 only. Buy SKL 80F from Dhaka at low price in Bdstall. There is currently 1 seller.
ElephantRoad
(Dhaka)
01857909100
৳ 67,000
2 hours ago
2 years parts
5 years service
NewFull Specification
| Item | Splicer Machine |
|---|---|
| Model | ✅ SKL 80F |
| Splicing Capacity | 5000 |
| Splicing Time | 5 |
| Splicing Mode | SM,MM |
| Splice Loss | 0.02dB |
| Motor | 4 |
| Alignment Mode | Core Alignment |
| Fiber Magnification | 400x (X or Y axes) |
| Applicable Fiber | SM(G.652 and G.657), MM(G.651), DS(G.653), NZDS(G.655) and custom fiber types |
| Heating Time | 26 seconds |
| Tension Test | 2N |
| Return Loss | Better than 60dB |
| Coating Diameter | 250 to 1000um: Approx. 16mm |
| Result Storage | 5000 latest connection results are stored in the internal memory |
| Display | 5 inch TFT color LCD display |
| Battery | 6700mAh |
| Electrodes Life Time | 5000 |
| Interface | USB interface |
| Power | AC 120V - 240V |
| Weight | 2.3KG |
- General
- Material: ABS
- Typical Connection Time: 9 seconds
- Heat Shrink Bushing
- Approx. 60mm/ 2.36in, 40mm
- Welding Mode: 17 groups of use mode
- Heating Mode: 9 group use mode

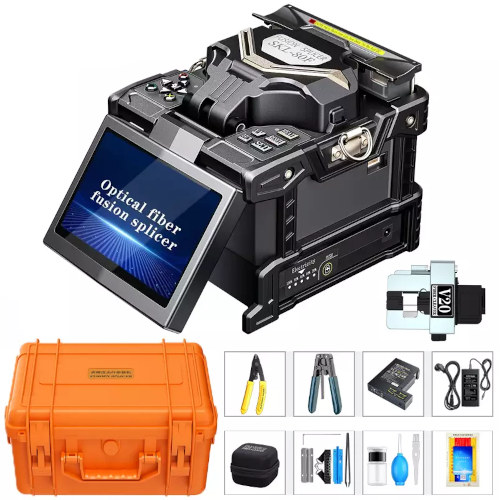

- Package List
- 1 x Fiber Fusion Splicer
- 1 x Fiber Cutter
- 1 x Wire Stripping Pliers
- 1 x 3 Hole Pliers
- 1 x Plastic Fixed Length Device
- 1 x Charging Adapter
- 1 x Power Cord
- 1 x Empty Bottle
- 1 x Air Blower
- 1 x Brush
- 1 x Tweezers
- 1 x Fusion Splicer User Manual
- 1 x Cutter User Manual
- 1 x Cutter Storage Bag
- 1 x Cooling Rack
- 3 x Blade Adjustment Wrench
- 1 x Bag
- 1 x Rain Cover
- 2 x Ropes
Description
This SKL 80F is an optical fiber fusion splicer machine. It has been designed with a 5-inch TFT LCD color display for showing the result. It includes a USB interface, which makes it easy to download data and software updates. Also, it offers a 6700mAh battery that can be continuously welded and heated for no less than 220 times. Moreover, it is made of high-quality plastic material that is durable and ensures longer life.
