SKL A88S Optical Fiber Fusion Splicing Machine
)
)
Price in Bangladesh
The lowest price of Skl a88s optical fiber fusion splicing machine in Bangladesh is Tk 67,000 only. Buy SKL A88S from Dhaka at low price in Bdstall. There is currently 1 seller.
01857909100
3 hours ago
2 years parts
5 years service
NewFull Specification
| Item | Splicer Machine |
|---|---|
| Model | ✅ SKL A88S |
| Splicing Capacity | 5000 |
| Splicing Time | 6 Seconds |
| Splicing Mode | 17 groups of use modes |
| Splicing Program | SM,MM |
| Splice Loss | 0.02dB |
| Motor | 4 |
| Fiber Type | Patch cord, Pigtail, Bare fiber, Skin cord |
| Alignment Mode | Core alignment |
| Fiber Magnification | 300x (X or Y axes) |
| Applicable Fiber | SM(G.652 and G.657), DS(G.653), NZDS(G.655) and custom fiber types |
| Heating Time | 15 minutes |
| Tension Test | 2N |
| Return Loss | Better than 60dB |
| Coating Diameter | 250 to 1000um: Approx. 16mm |
| Result Storage | 5000 latest connection results are stored in the internal memory |
| Display | 5.0 inch TFT color LCD display |
| Battery | 6700mAh |
| Electrodes Life Time | 5000 times |
| Interface | USB interface |
| Operating Condition | 0℃- + 40℃ |
| Power | 100-240V |
| Weight | 8.000 Kg |
| Dimension | 38 x 28 x 22cm |
- General
- Material: ABS
- Typical Connection Time: 9 seconds
- Maximum Wind Speed: 15m/S
- Heat Shrink Bushing: Approx. 60mm/ 2.36in, 40mm
- Heating Mode: 9 group use mode
- Package Contains
- 1 x Fiber Fusion Splicer
- 1 x Hand Strap
- 1 x Battery
- 1 x Fiber Cleaver
- 1 x Fiber Cleaver Accessory
- 1 x Fiber Cleaver Storage Box
- 1 x Green Cable Stripper
- 1 x Yellow 3-Neck Plier
- 1 x Plastic Length Fixer
- 1 x Charging Adapter
- 1 x Power Cord
- 1 x Alcohol Bottle
- 1 x Blow Up Balloon
- 1 x Hair Brush
- 1 x Tweezer
- 1 x Hanging Fiber Tray
- 1 x Orange Storage Box
- 2 x Instruction
Description

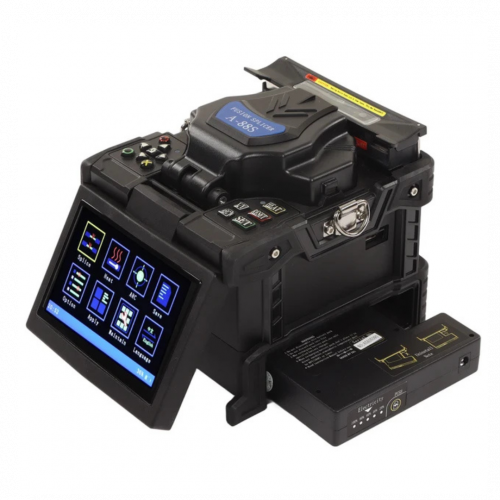

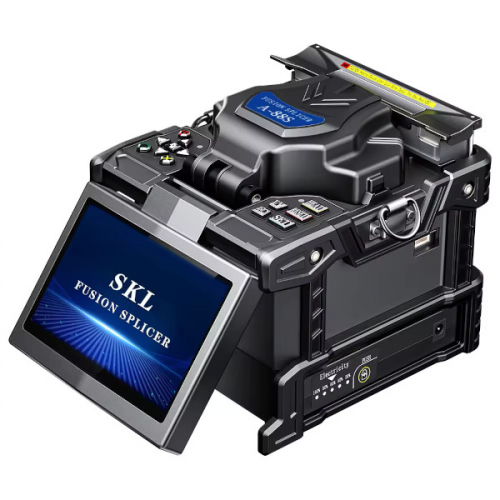

The SKL A88S is an optical fiber splicer machine that comes with a 5" display that shows the result of cutting. The splicer machine features a 5000 splicing capacity, 6-second splicing time, 4 motors, 17 groups of use modes, and 0.02dB splice loss. The machine supports USB connectivity that ensures a fast and easy data download and software updates. Besides, the machine features a 6700mAh battery that can offer continuous welding and heating for more than 220 times. Moreover, the machine is built with ABS plastic material that will ensure long-term durability.
