Solis 5KW Hybrid Inverter
ID:
146614
Status: In Stock
-18%
)
)
)
)
Price in Bangladesh
The lowest price of Solis 5kw hybrid inverter in Bangladesh is Tk 110,000 only. Buy S6-EH1P5K-L-PLUS from Dhaka at low price in Bdstall. There is currently 1 seller.
Gulistan
(Dhaka)
01996677558
৳ 110,000
23 days ago
5 years parts
5 years service
NewFull Specification
| Item | Solar IPS |
|---|---|
| Model | ✅ S6-EH1P5K-L-PLUS |
- Key Functions & Features
- Solis 5kW single-phase hybrid inverter
- Supports solar + grid + battery configurations
- Seamless energy storage integration
- Real-time monitoring & smart energy management
- High efficiency & reliable operation
- Compact design, easy to install
- Ideal for residential & light commercial setups
- Compatible with various battery systems
- User-friendly interface with advanced protections
- Monitoring: Supported
- PV (DC) Input
- Recommended Max. PV array size 10 kW
- Max. usable PV input power 8 kW
- Max. input voltage 500 V
- Rated voltage 330 V
- Start-up voltage 90 V
- MPPT voltage range 90–435 V
- Max. input current 16 A / 16 A
- Max. short circuit current 20 A / 20 A
- MPPT trackers/strings 2 / 2
- Battery
- Battery type Li-ion / Lead-acid
- Battery voltage range 40–60 V
- Max. charge/discharge power 5 kW
- Max. charge/discharge current 112 A
- Communication CAN / RS485
- AC Output (Grid)
- Rated output power 5 kW
- Max. apparent output power 5 kVA
- Operation phase L/N/PE
- Rated grid voltage 220V / 230V
- Rated grid frequency 50Hz / 60Hz
- Rated output current 22.8 A / 21.8 A
- Max. output current 22.8 A / 21.8 A
- Power factor >0.99 (0.8 lead–0.8 lag)
- THDi <2>
- AC Input (Grid)
- Input voltage range 187–253 V
- Max. input current 32 A
- Frequency range 45–55 Hz / 55–65 Hz
- AC Output (Backup)
- Rated output power 5 kW
- Max. apparent output power 2× rated (10s)
- Backup switch time <4>
- Rated output voltage 220V / 230V
- Rated output frequency 50Hz / 60Hz
- Rated output current 22.8 A / 21.8 A
- Max. AC passthrough current 40 A
- THDv (@linear load) <2>
- Efficiency
- Max. efficiency 96.2%
- European efficiency 96.1%
- Battery charged by PV/AC efficiency 95.3% / 93.9%
- Battery discharged to AC efficiency 93.8%
- General Data
- Dimensions (W×H×D) 335 × 560 × 227 mm
- Weight 21.6 kg
- Ingress protection IP66
- Cooling Natural convection
Description

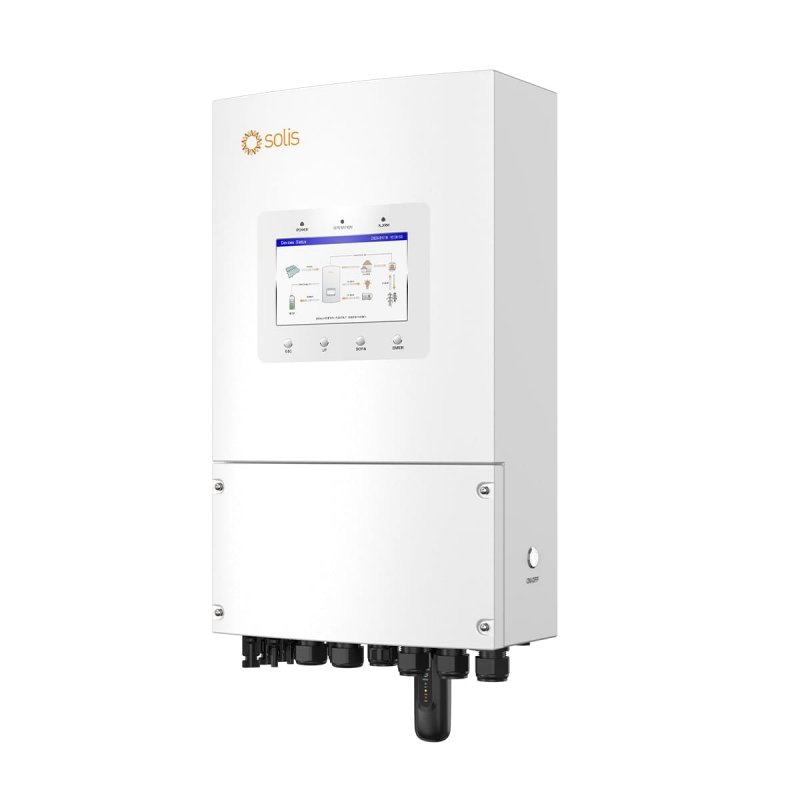

Solis S6-EH1P5K-L-PLUS is a 5kW single-phase hybrid solar inverter that can that combines the functions of a grid-tied inverter and an off-grid inverter, so it can manage both solar power and battery storage. It has advanced photovoltaic & battery protection functions, which make the system reliable, safe, and user-friendly. It is compatible with various battery systems and ideal for residential & light commercial setups.
