Item | Network Switch |
---|---|
Brand | TRENDnet |
LAN Connectivity | IEEE 802.3 10Base-T, IEEE802.3u 100Base-TX, IEEE 802.3af Power Over Ethernet |
Ports | 4 x 10/100Mbps Auto-MDIX POE Ports (1~4), 4 x 10/100Mbps Auto-MDIX Fast Ethernet Ports (5 ~8) |
Speed | Ethernet: 10/20Mbps (Half/Full Duplex), Fast Ethernet: 100/200Mbps (Half/Full Duplex) |
Protocol | Protocol/Topology: CSMA/CD; Star |
Other Features | Power: 48V DC 0.8A External Power Adapter; Power Consumption: 6.3 Watts Max (No PD Device Connected), 36.3 Watts Max (with 30W PoE Device Connected) |

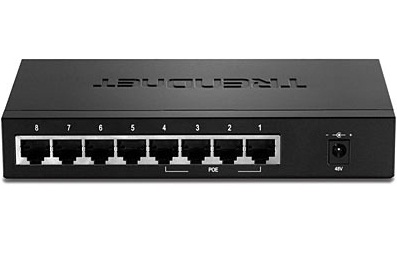

TRENDnet TPE-S44 8-port 10/100Mbps PoE switch. TPE-S44 8-port switch integrates power over Ethernet (PoE) and network management features into a cost effective and scalable solution. The TPE-S44 reduces equipment cost by delivering data and power over existing network cable infrastructure. Features: IEEE 802.3af power over Ethernet (PoE) standard compliant, 8 x 10/100Mbps auto-negotiation and auto-MDIX fast Ethernet RJ45 ports, built-in 4 PoE ports (port 1 ~ port 4), supports PoE power maximum 15.4 watts for each POE port, supports PoE powered device (PD) classification identify, full wire-speed non-blocking reception and transmission, store and forward switching method, 96Kbytes RAM data buffer and 1K entries MAC address table, extensive diagnostic LED's on the front panel, IEEE 802.3x flow control for full-duplex mode; back pressure flow control for half-duplex mode etc.
