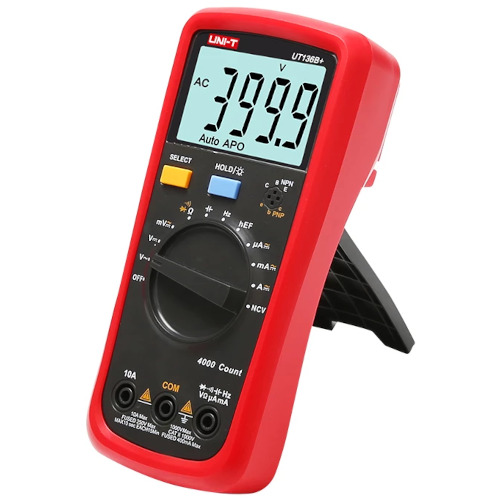

UNI-T UT136B+ AC / DC Resistance Digital Multimeter
)
Price in Bangladesh
The lowest price of Uni-t ut136b+ ac / dc resistance digital multimeter in Bangladesh is Tk 2,800 only. Buy UT136B+ at low price in Bdstall. There is currently 0 seller.
Full Specification
| Item | Multimeter |
|---|---|
| Model | ✅ UT136B+ |
- AC / DC resistance frequency auto range meter
- Maximum display count 3999
- 400Hz~40MHz frequency
- Low battery indication
- Diode/Transistor
- Overload alarm
- Auto range
- Backlight
- Auto power off
- LCD size is 60 x 38mm
- The safety rating is CAT II 1000V
- Testing & measurement function
- AC / DC voltage
- AC / DC current
- Resistance
- Capacitance
- Frequency
- Transistor testing
- Diode testing
- NCV
- Accuracy Range
- DC voltage is 400mV / 4V / 40V / 400V / 1000V ± (0.5 percent＋2)
- AC voltage is 400mV / 4V / 40V / 400V / 1000V ± (0.7 percent＋3)
- DC current is 400uA / 4000uA / 40mA / 400mA / 4A / 10A ± (1.0 percent 3)
- AC current is 400uA / 4000uA / 40mA / 400mA / 4A / 10A ± (1.5 percent 5)
- Resistance is 400Ω / 4kΩ / 40kΩ / 400kΩ / 4MΩ / 40MΩ ± (0.8 percent 2)
- Capacitance is 4nF / 40nF / 400nF / 4μF / 40μF / 400μF / 4mF / 40mF ± 10%
Description
UNI-T UT136 series digital multimeter is a new generation of advanced design that the instrument can withstand a drop from a height of two meters. It has low power consumption and an automatic power-saving function which will get the battery service life longer than 500 hours. This UT136B+ meter is a safe and reliable multimeter that ensures the shock resistance of the device. This meter has an on-off test, data hold, auto power off, low voltage display, and screen backlight functions. It is equipped with a 3mm protective case and 2-meter drop proof. The UNI-T multimeter can measure DC voltages up to 1000V and currents up to 10A. This meter can withstand 1kV voltage shock and is very easy to use. It has a large LCD screen that displays everything clearly.
