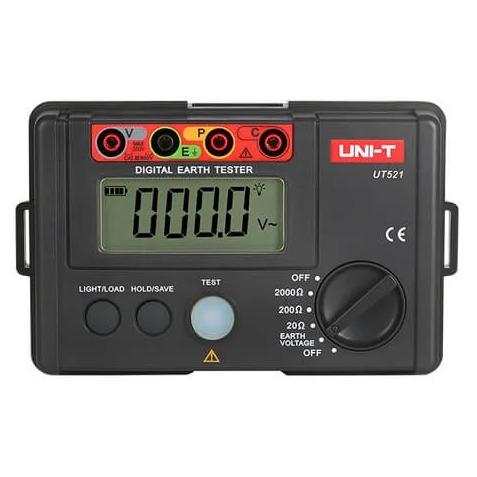

UNI-T UT521 Digital Earth Resistance Tester
ID:
136021
Status: In Stock
)
)
)
Price in Bangladesh
The lowest price of Uni-t ut521 digital earth resistance tester in Bangladesh is Tk 14,500 only. Buy UNI-T UT521 from Dhaka at low price in Bdstall. There is currently 1 seller.
01839689255
4 hours ago
NewFull Specification
| Item | Other Meters |
|---|---|
| Model | ✅ UNI-T UT521 |
- Technical Information
- Earth resistance
- 0~20Ω ±(2 percent +10)
- 0~200Ω ±(2 percent+3)
- 0~2000Ω ±(2 percent+3)
- Power: 1.5V battery (LR6) x 6
- Frequency: 50Hz/60Hz
- AC earth voltage: 0~200V ±(1 percent+4)
- Auto power off for around 10 minutes
- Earth resistance
- Display
- Full icon display
- Display count: 2000
- Poor contact display: "Ω"
- Over-range display: Display "OL"
- Display 70.6mm x 34mm
- Function
- Data hold
- Manual range
- Data storage: 20
- LCD backlight
- Low battery indication
- Double insulation protection
- Wire Testing
- Simple 2-wire testing
- Precise 3-wire testing
- Standard accessories
- Batteries

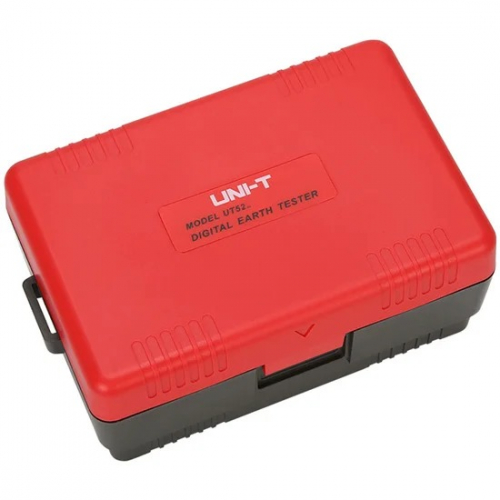

- Carrying bag
- English manual
- Earth spike, Gallus
- Simple test leads with alligator clips
- Standard individual packing gift box
- Body
- Dimension: 160 x 100 x 70.5mm
- Weight: 560g
- Certificates: CE, UKCA
- Color: Red and grey
- Made in China
Description
This UNI-T UT521 is a digital earth resistance tester which is designed for measuring the earthing system in distribution networks, power substations, industries, etc. It measures the earthing resistance and is used for sizing and projecting the grounding grid. It comes with an LCD backlight, low battery indication, and double insulation protection features.
