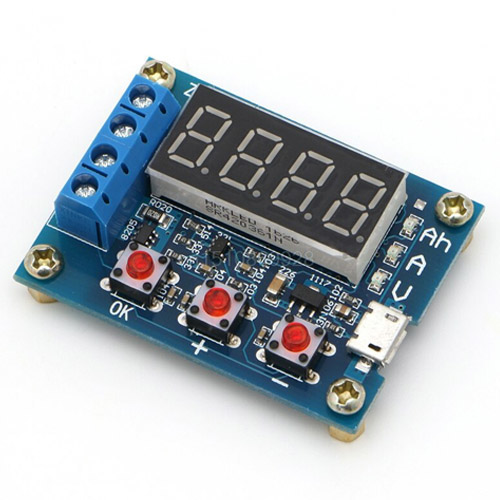

ZB2L3 Battery Capacity Tester Module
ID:
144900
Status: In Stock
-12%
)
)
Price in Bangladesh
The lowest price of Zb2l3 battery capacity tester module in Bangladesh is Tk 250 only. Buy from Gazipur at low price in Bdstall. There is currently 1 seller.
2 days ago
NewFull Specification
| Item | Module Board |
|---|
- Power supply voltage: DC4.5-6V (micro USB connector)
- Operating current: Less than 70mA
- Discharge voltage: 1.00V-15.00V, 0.01V resolution
- Termination voltage range: 0.5-11.0V
- Supported current: Maximum 3.000A, 0.001A resolution
- Maximum voltage measurement error: 1% 0.02V
- Maximum current measurement error: 1.5% ± 0.008A
- Maximum battery capacity range
- 9999Ah (1Ah = 1000mAh) greater value is switched by shifting the decimal point, when it is less than 10Ah will display X.XXX, up to 10Ah or more will display XX.XX, and so on
- Package includes:
- 1 x ZB2L3 Battery Capacity Tester Module
- 2 x 5W 7.5Ohm Resistor
Description

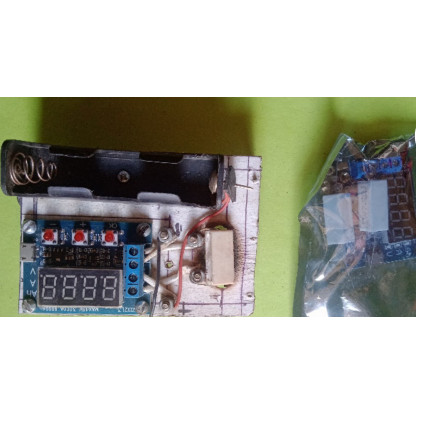

This ZB2L3 Battery Capacity Tester Module is usually used to measure the capacity of different types of batteries, which include 18650 lithium-ion, NiMH, LiPo, and lead-acid batteries. Also, it has a digital display that shows the measured capacity in Ampere-hours (Ah), works by connecting an external load to the battery, and it is suitable for hobbyists, electronics enthusiasts, or anyone who needs to assess the health and performance of their batteries.
