Item | Motherboard |
---|---|
Chipset | NVIDIA MCP68S |
Supported Processors | Supports AMD Phenom II/Athlon II/Sempron Processors. It is Recommended to Use 95w CPU, Support HT 2G |
Front Side Bus | 1333 MHz |
Max Memory | 2 x DDR3 DIMM Memory Slot, Max. Supports up to 8GB Memory. Support Dual Channel DDR3 800/1066/1333(supported by CPU model) MHz |
Onboard Video | NVIDIA GeForce 7025 GPU, On Board Graphic Max. Memory Share Up to 512MB(Under OS By Turbo Cache) |
Onboard Audio | Realtek ALC662 6-Channel HD Audio |
Onboard LAN | Realtek RTL8201CL - 10/100 PHY |
Connectors | 4 x SATA2 Connector, 1 x IDE Connector, Support SATA RAID: 0,1,5,10. 4 x USB 2.0 Port, 2 x USB 2.0 Header |
Other Features | 1 x PCI-E x16 Slot, 2 x PCI Slots. PS/2 Mouse/Keyboard Support. Micro ATX Form Factor. Support Windows XP / Vista / 7 |

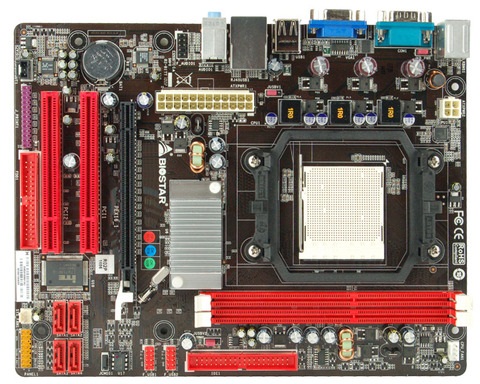

Biostar N68S3 socket AM3 motherboard supports AMD Phenom II/Athlon II/Sempron processors. Highlights of N68S3: Hyper Transport technology up to 2G; supports AMD Cool'n'Quiet technology; it is recommended to use 95w CPU; supports BIO-Remote 2 technology; supports Charger Booster technology.
