Item | Motherboard |
---|---|
Brand | Asus |
Chipset | Intel® B75 |
Supported Processors | Intel® Socket 1155 for 3rd/2nd Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors |
Max Memory | 2 x DIMM, Max. 16GB, DDR3 2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1600/1333/1066 MHz Non-ECC, Un-buffered Memory |
Onboard Video | ntegrated Graphics Processor Multi-VGA output support : DVI/RGB ports - Supports DVI with max. resolution 1920 x 1200 @ 60 Hz - Supports RGB with max. resolution 2048 x 1536 @ 75 Hz Maximum shared memory of 1696 MB |
Onboard Audio | VIA VT1708S 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, Anti-pop Function |
Onboard LAN | Realtek®, 1 x Gigabit LAN Controller(s) |
Other Features | User's manual I/O Shield 1 x SATA 3Gb/s cable(s) 1 x SATA 6Gb/s cable(s) |

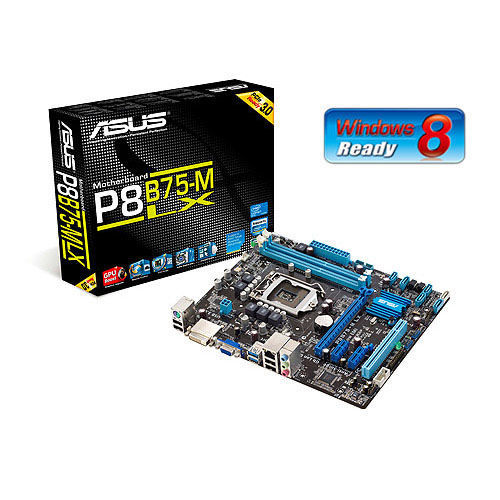

Asus P8B75-M LX Main Board
