HSV-110D Portable Multi-Function OTDR
ID:
150615
Status: In Stock
-8%
Price in Bangladesh
The lowest price of Hsv-110d portable multi-function otdr in Bangladesh is Tk 27,500 only. Buy HSV- 110D from Dhaka at low price in Bdstall. There is currently 1 seller.
ElephantRoad
(Dhaka)
01857909100
৳ 27,500
1 day ago
1 year parts
1 year service
NewFull Specification
| Item | Cable Tester |
|---|---|
| Model | ✅ HSV- 110D |
- OTDR
- Wavelength
- 1310nm/1550nm±20nm (1610 online test optional)
- Fiber Type: G.652 SM Fiber
- Dynamic Range: 24dB/22dB
- Event Blind Zone: 3m
- ATT Blind Zone: 8m
- Test Range: 10m~60km
- Pulse Width: 3ns~10usm
- Ranging Accuracy
- + (1m+Sampling Interval +0.005% × Test Distance)
- Loss Accuracy: ±0.2dB/dB
- Sampling Points: 16k-128k
- Sampling Resolution: 0.05m~8m
- Reflection Accuracy: ±3dB\
- Data Storage: Internal: 600; External: TF Card
- Laser Safety Level: Class II level
- File Format: SOR Standard File Format
- Connector: FC/UPC
- Wavelength
- OPM
- Wave Range: 800nm~1700nm
- Interface Type: Universal Joint FC/SC/ST
- Test Range: -50dBm~+26dB
- Uncertainty: ±5%
- Frequency Identification: CW/270/330/1k/2kHz
- Calibration Wavelength: 850/980/1300/1310/1490/1550/1625/1650nm
- LS
- LD Type: FP-LD
- Output Wavelength: 1550nm±20nm
- Output Power: -5dBm
- Modulation Frequency: 270/330/1k/2kHz
- Stability: CW, ±0.5dB/15min
- Connector: FC/UPC
- VFL
- Work Wavelength: 650nm±20nm
- Output Power: 10mW
- Mode: CW/1Hz/2Hz
- Connector: FC/SC/ST
- Technical Information
- Display: 3.5-inch Color LCD
- Data Interface: Micro USB
- External Storage: TF Card
- Power Supply: Polymer Li-battery: 3.7V, 4000mAh
- Battery Life: Standby: 20h, Measuring Time: 12h
- Operating Temperature: -10°C~+50°C
- Storage Temperature: -40°C~+70°C
- Relative Humidity: 0~95% Non Condensing
- Dimension: 173mm x 82mm x 37mm
- Weight: 350g
Description

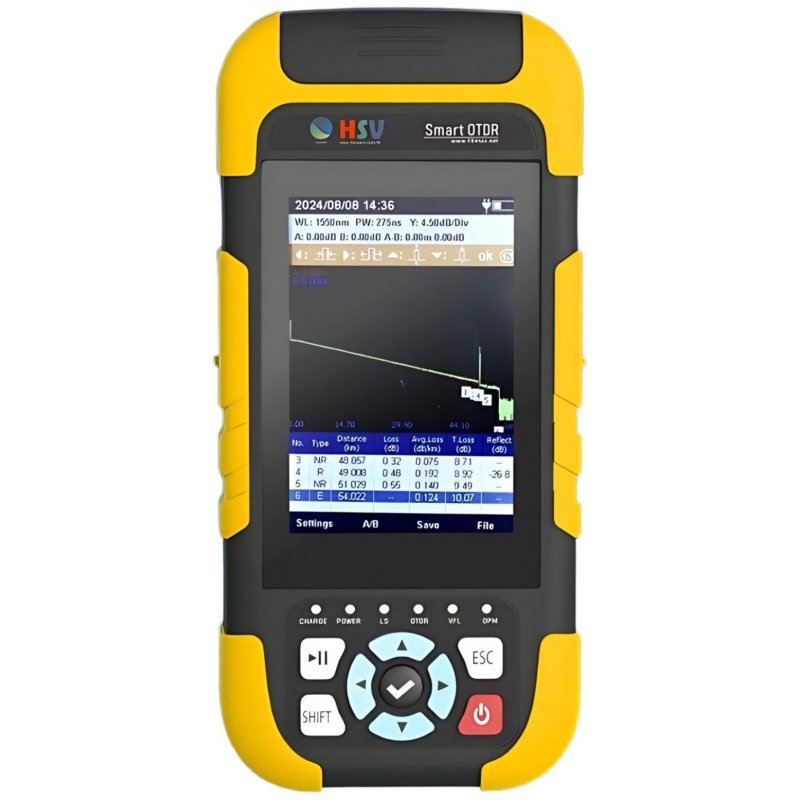

This HSV-110D is a portable, multi-functional optical time domain reflectometer OTDR used for fault localization, precise test characterization observation of optical cables. It uses light pulses to detect problems such as breaks, bends, and weak splices in optical cables, as well as a color touchscreen and event map for intuitive fault finding.
