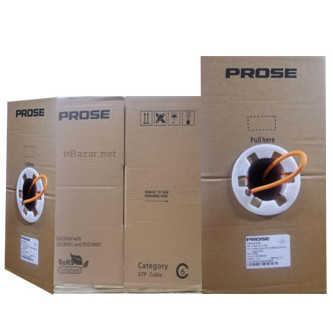

Prose Cat 6 U/UTP PVC Cable
ID:
140896
Status: In Stock
)
Price in Bangladesh
The lowest price of Prose cat 6 u/utp pvc cable in Bangladesh is Tk 16,400 only. Buy from Dhaka at low price in Bdstall. There is currently 1 seller.
01711421914
1 day ago
NewFull Specification
| Item | Network Cable |
|---|---|
| Cable Type | Cat6 |
| Color | Gray |
- Cable Type UTP
- Wiring Standard TIA/EIA-568B.2-1 & UL444 & ISO/IEC 11801
- Length (M) 100/305
- Certification E142890/UL
- Conductor Size: 24Awg
- Construction: Solid Bare Copper
- Cond. Diam.: 1/0.540±0.02 mm
- Insulation Avg. Thick.: 0.22 mm
- Min. Thick.: 0.21 mm
- Diameter: 0.98 ± 0.02 mm
- Material: HDPE & PVC
- Unaged Tensile Strength: 2400 Psi Min. (1.69 Kg/M2)
- Unaged Elongation: 300% Min.
- Aged Tensile Strength: Unaged Min. 75% (100°C x 48Hrs)
- Aged Elongation: Unaged Min. 75% (100°C x 48Hrs)
- Shielded Pair Stranded: 2 Cores Stranded
- Filler(Slot): HDPE Isolator Separator
- Assembly Stranded: 4 Pair Stranded
- Jacketed Avg. Thick.: 0.50 mm
- Min. Thick.: 0.45 mm
- Diameter: 5.80 ± 0.2 mm
- Unaged Tensile Strength: 2000 Psi Min. (1.41 Kg/ M2)
- Unaged Elongation: 100% Min.
- Aged Tensile Strength: Unaged Min. 85% (100°C x 240Hrs)
- Aged Elongation: Unaged Min. 50% (100°C x 240Hrs)
- Item 24Awg × 4P
- Rating Temp Voltage 75°C 300V
- Conductor Resistance 9.38 Ω/100M/20°C Max.
- Mutual Capacitance 56 pF/M Max.
- Dielectric Strength AC 1.5 KV/2 Sec.
- Spark Test 2.5 KV
- Insulation Shrinkback 150m/m, 121°C ± 1°C × 1HR≦9.5m/m
- Cold Bend Test -20°C × 4HRS No.Crack
- Flame Retardant Test CM
- AC Leakage Current Through Overall Jacket AC 1500V≦10mA
- DC Resistance Unbalance 5% Max.
- Pair-To-Ground Capacitance Unbalance 330 pF/100m Max.
- Characteristic Impedance 1 ~ 250 MHz 100 ± 15 Ohms
- Structural Return Loss 250 MHz 13.2dB Min.
- Propagation Delay 250 MHz 536.3nS/100m Max.
- Delay Skew 1 ~ 250 MHz 45nS/100m Max.
Description
Prose Cat 6 U/UTP PVC Cable supports networks with speeds of 10 Mbps, 100 Mbps, and 1000 Mbps and can deliver up to 1000 Mbps gigabit Ethernet. It works with a lot of devices, like computers, TV sets, digital set-top boxes, routers, network hubs, switches, ADSL, etc.
